WDM 1.25 Gbps Singlemode Single-Fiber SFP Modules - 10 km Span

WDM 1.25 Gbps Singlemode Single-Fiber SFP Modules - 10 km Span

OVERVIEW

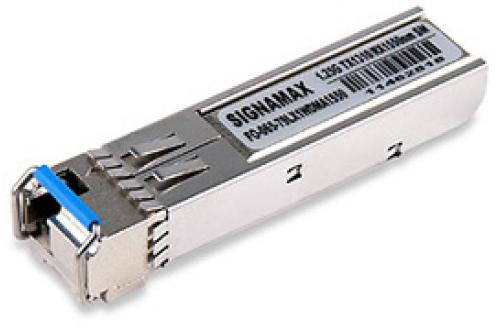

The Signamax 065-79LX1WDMx1550 series models are Small Form-factor Pluggable (SFP) multimode fiber modules that support Gigabit Ethernet or SONET OC-12 over a single strand of singlemode fiber cable at distances up to 10 kilometers. There are two types of models in this series: one transmits at 1310 nm and receives at 1550 nm (model 065-79LXnWDMA1550), and the other transmits at 1550 nm and receives at 1310 nm (model 065-79LXnWDMB1550). These modules are designed to be used in pairs facing each other across a single stand of singlemode fiber. The "n" in the part number refers to the first digit of the typical distance spanned in kilometers (1 = 10 km). They are a cost-effective method of providing changeable Gigabit Ethernet or SONET OC-12 single-fiber singlemode interfaces to switches and media converters equipped with a standard SFP slot.

KEY FEATURES

  • RoHS Compliant
  • Operation Temperature: 0~+70°C
  • Model 065-79LX1WDMA1550: 1310 nm uncooled FP Laser Diode transmitter;1550 nm Photo Diode receiver
  • Model 065-79LX1WDMB1550: 1550 nm uncooled DFB Laser Diode transmitter;1310 nm Photo Diode receiver
  • Up to 60 Km link distance models are also available (indicative only**)
  • Hot pluggable
  • Metal enclosure, low EMI
  • Single 3.3V power supply
  • Low Power Dissipation

SPECIFICATIONS

Part Number TX / RX Light Link Power Typical Max. Supply Operating
Spectrum Source Budget Distance** Voltage Temp.
065-79LX1WDMA1550 Tx: 1310 nm FP Laser 11 dBm 10 km 3.3V 0 ~ 70 °C
(Blue clasp) Rx: 1550 nm
065-79LX1WDMB1550 Tx: 1550 nm DFB Laser 11 dBm 10 km 3.3V 0 ~ 70 °C
(Green clasp) Rx: 1310 nm

** Maximum distances attainable on singlemode fiber circuits are dependent upon a
    circuit's conditions; i.e., the number of splices and patch panels and the number
    of bends in the circuit path. For comparison with competing products,
    please use the Link Power Budget for meaningful comparisons.
