OVERVIEW

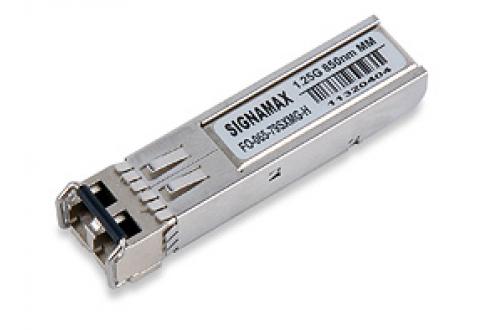

Signamax Small Form-factor Pluggable (SFP) fiber modules come in an array of options supporting Gigabit Ethernet transmission over either multimode or singlemode fiber cable at distances up to 220 meters. They adhere to the IEEE 802.3z standards for Gigabit Ethernet fiber connectivity, and are cost-effective methods of providing changeable Gigabit Ethernet fiber optic interfaces to switches and media converters equipped with a standard SFP port. Both standard temperature range (0° C to 70° C) and hardened temperature range (-40° C to 85° C) versions are available

KEY FEATURES

RoHS compliant
Meets the SFP Multi-Source Agreement (MSA)
Up to 220 m link distance
Hot pluggable
Metal enclosure for low EMI performance
Low power dissipation

Application

Router / Server interface
Distributed multi-processing
Switch to switch interface
High speed I/O for file server

SPECIFICATIONS

Part Number	TX/RX Spectrum	Light Source	Link Power Budget	Typical Max. Distance	Supply Voltage	Operating Temp.
065-79SXMG	SX 850 nm	VCSEL	9 dBm	550 m on 50μ fiber, 220 m on 62.5μ fiber**	3.3 V	0 ~ 70° C
065-79SXMG-H	SX 850 nm	VCSEL	9 dBm	550 m on 50μ fiber, 220 m on 62.5μ fiber**	3.3 V	-40 ~ 85° C

** Maximum distances attainable on multimode Gigabit Ethernet fiber circuits are primarily dependent upon multimode distortion, also known as modal dispersion. Larger aperture fiber optic cable allows more modes to be generated at the launch point; these modes cause the pulse width to spread across a Gigabit Ethernet bit time intervalto a point where accurate determination of data (i.e., ones and zeroes) is not possible.These are physical properties that are not specific to this product.

These properties also apply to competing products operating in the same frequency spectrum over multimode fibercable having the same modal bandwidth.

DOWNLOADS

065-79SXMG Datasheet

065-79SXMG-H Datasheet

ORDERING INFORMATION

Standard Temperature Range (0° C to 70° C) Models

Part Number	Description
065-79SXMG	1000BaseSX SFP Module – MM/LC, 220m Span on 62.5µm Fiber / 550m Span on 50µm Fiber

Industrial Temperature Range (-40° C to 85° C) Models

Part Number	Description
065-79SXMG-H	1000BaseSX SFP Module – MM/LC, 220m Span on 62.5µm Fiber / 550m Span on 50µm Fiber
