12-Channel Rack Mount Media Converters

12-Channel Rack Mount Media Converters

OVERVIEW

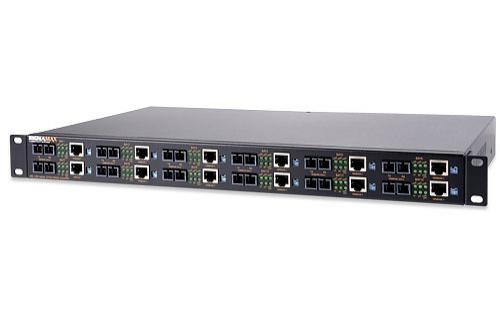

The Signamax 065-1200 series 12-Channel Gigabit Ethernet Rack Mount Media Converter is a perfect solution for large installations that utilize many of the same type of media converters. The 065-1200 contains 12 channels of media conversion in a standard rack mountable case only one rack unit high. This extremely high port density allows the maximum number of media converter channels per rack for enterprise-level businesses and carriers. Redundant fan-cooled power supplies ensure system uptime.

The 065-1200 has a choice of configurations, utilizing the same technology and connector types as the standalone media converters in the 065-119x series for 1000BaseT to 1000BaseSX/LX conversion, emulating twelve 065-1195, 065-1197, or 065-1197ED con-verters.

KEY FEATURES

  • 12 Media Converter Channels In 1U of Rack Space
  • Media Conversion Between 1000T and 1000SX/LX
  • Front Panel Status LEDs
  • Back-Pressure & IEEE802.3x Compliant Flow Control
  • All TX Ports Support Auto-MDIX
  • Lifetime Performance Warranty

SPECIFICATIONS

  • APPLICABLE STANDARDS

IEEE 802.3ab 1000BaseT
IEEE 802.3z 1000BaseSX
IEEE 802.3z 1000BaseLX

  • FIXED PORTS

Twelve channels of media conversion, each with a twisted pair port and a corresponding fiber optic port meeting either of the following specifications:

GIGABIT ETHERNET SERIES:
065-1200SC95 version:
1000BaseT to 1000BaseSX, multimode fiber, SC connectors; MT-RJ connectors available by special order. Maximum distance, 1000BaseSX port: 220 meters over 62.5 micron multimode fiber or 550 meters over 50/125 micron multimode fiber (full duplex only)
065-1200SC97 & 065-1200SC97ED versions:
1000BaseT to 1000BaseLX, singlemode fiber, SC connectors.
Maximum distance, 1000BaseLX port: 10 km (Model 065-1200SC97) or 20 km (Model 065-1200SC97ED) (full duplex only)
LED Status Indicators:
Per unit: Power status, FDX/COL, TX, RX (4 LEDs)
Per port: LNKF for fiber port, LNKC for copper port (1 LED each)

  • PERFORMANCE

GIGABIT ETHERNET SERIES:
Latency: < 4.2 µs (LIFO)
Throughput @ 1000Base: 1,488,100 pps (64-byte packets)

  • FIBER INTERFACES

1000BaseSX, MULTIMODE PN 065-120095SC
Type: Laser Diode
Wavelength: 850 nm nominal.
Maximum Output: - 4.0 dBm
Minimum Output Power: - 9.5 dBm
Sensitivity: -13.5 dBm
Maximum Input Power: - 13.5 dBm
Link Power Budget: 4.0 dB

1000BaseLX, SINGLEMODE PN 065-120097SC
Type: MQW Laser
Wavelength: 1300 nm nominal (1270 nm maximum, 1355 nm minimum)
Maximum Output Power: - 3.0 dBm
Minimum Output Power: - 11.0 dBm
Sensitivity: -22.0 dBm
Maximum Input Power: - 3.0 dBm
Link Power Budget: 11.0 dB

1000BaseLX, SINGLEMODE PN 065-120097EDSC
Type: MQW Laser
Wavelength: 1300 nm nominal (1261 nm maximum, 1360 nm minimum)
Maximum Output Power: - 3.0 dBm
Minimum Output Power: - 8.0 dBm
Sensitivity: -22.0 dBm
Maximum Input Power: - 3.0 dBm
Link Power Budget: 14.0 dB

  • PHYSICAL CHARACTERISTICS

Dimensions: 17.3"W x 8.0"D x 1.8"H (440mm x 205mm x 45m)
Weight: 6.8 lbs. (3.1 kg) maximum
Standard 19-in rack mounting (hardware included)

  • ENVIRONMENTAL CHARACTERISTICS

Operating:
Temperature: 0º - 40º C (32º - 140º F)
Relative Humidity: 10 to 90%, non-condensing

Non-Operating/Storage:
Temperature: -25°C to 70°C (-13°F to 158°F)
Relative Humidity: 10 to 90%, non-condensing

  • POWER/ ELECTRICAL CHARACTERISTICS

Heat Dissipation/Hour: 85 BTU/hr
Maximum Wattage: 52 W.
Current: 2.0 A maximum
AC Input: 100 ~ 260 VAC, 47 ~ 63 Hz internal universal power supply
Above specifications apply to each power supply (2 are provided standard, in a load-sharing redundant configuration)

  • EMISSIONS

FCC part 15 Class A, CISPR Class A, VCCI Class A, CE Mark

  • WARRANTY

Limited Lifetime
