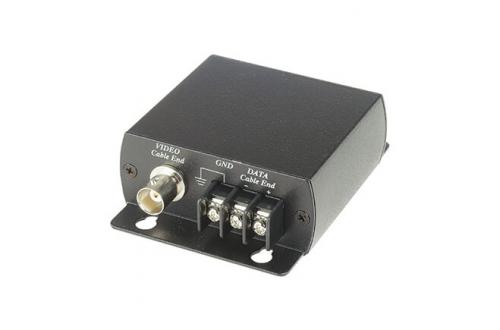

JSP-009-1 HD-TVI/AHD/HDCVI/CVBS & Data Surge Protector

JSP-009-1  HD-TVI/AHD/HDCVI/CVBS & Data Surge Protector

OVERVIEW

 Video and Data Surge Protection Device


Application for protects equipment from high voltage surges such as lightning strikes. UL grounding requirements for coaxial cable offer protection from hazardous voltages that may occur on the shielding. Because of the physical length of ground wires, UL grounding systems may appear as an open circuit to lightning caused, high frequency surges and provide no protection from these surges getting into a home and destroying CATV converters, TV sets, VCR, Camera etc.

KEY FEATURES



  • BNC Female + Terminal to BNC Female + Terminal.
  • Perfect for speed dome camera & control signal.

SPECIFICATIONS



Item No.

JSP-009-1

Surge Protection Attack Time

1 ns

Maximum Surge Voltage

4 KV

Surge Life

300 surges of 100Amps

Normal Resistance Across Coax

10,000 MΩ

Surge Resistance

Approx. 0Ω

BAND PASS

0~1 GHZ

Power Passing Capability

130V DC / AC, 65 Vrms at10 Amps

Insertion Loss

Less than 0.2 dB

Return Loss (75 ohms)

16dB

Connectors

Terminal

Dimensions

65x25x25 (mm)

WEIGHT

65 (g)



DOWNLOADS

Information will be available soon

ORDERING INFORMATION



Part Number

Description

JSP-009-1

HD-TVI/AHD/HDCVI/CVBS & Data Surge Protector
