KEY FEATURES
- Terminal connector to terminal connector.
- Application for protect AC100-120V.
- Providing protection for equipments or instruments with power consumption below 8Amp.

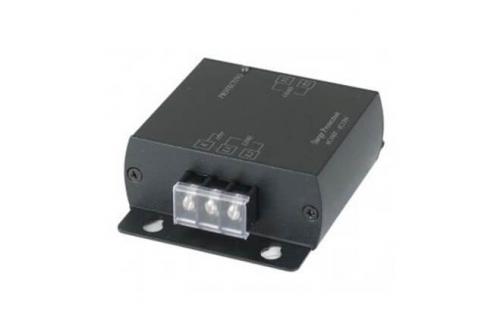

JSP-006-AC110 AC Power Surge Protection Device Terminal Connector
OVERVIEW
AC Power Surge Protector Terminal Connector
SPECIFICATIONS
|
Item No. |
JSP-006-AC110 |
|
Nominal peak voltage Wire |
>150V |
|
Nominal peak voltage Wire~grounding |
>150V |
|
Surge Current Capacity |
6000A (8x20uS) |
|
Surge Voltage Capacity |
6000V (1.2uS x 50 uS) |
|
Response time |
<0.1uS |
|
Leakage current Wire |
<1mA (at150VAC) |
|
Leakage current Wire~grounding |
<1mA (at150VAC) |
|
Max. Load Current |
8A (Max) |
|
Temperature |
Operation: 0 to 55℃, Storage: -20 to 85℃, Humidity: up to 95% |
|
Material |
Metal Black |
|
Dimension |
67 x 87 x 28.5 (mm) |
|
Weight |
140 (g) |
DOWNLOADS
Data sheetORDERING INFORMATION
|
Part Number |
Description |
|
JSP-006-AC110 |
AC Power Surge Protection Device Terminal Connector / AC100-120V
|
