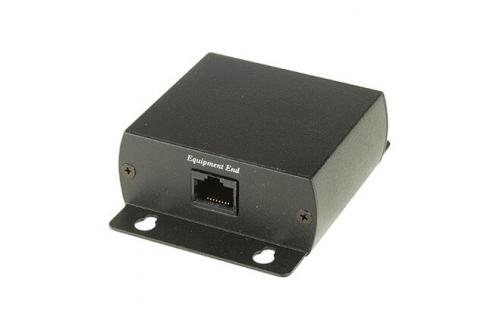

Network Surge Protection Device
|
Item No. |
JSP-003-1 |
|
Surge Protection Attack Time |
1 ns |
|
Maximum Surge Voltage |
4 KV |
|
Surge Life |
300 surges of 100Amps |
|
Normal Resistance Across Coax |
10,000 MΩ |
|
Surge Resistance |
Approx. 0Ω |
|
BAND PASS |
0~1 GHZ |
|
Power Passing Capability |
DC 90V, AC 90Vp-p, 65 Vrms at10 Amps |
|
Insertion Loss |
Less than 0.2 dB |
|
Return Loss (10 ohms) |
16dB |
|
Connectors |
RJ45 |
| Dimensions | 87x67x27 (mm) |
| WEIGHT | 126 (g) |
|
Part Number |
Description |
|
JSP-003-1 |
Ethernet Surge Protector |
