The Signamax E-300 Series extenders provide businesses a comprehensive solution to connect IP cameras, Wireless Access Points, Computers or entire buildings using a variety of legacy and new cables over long distances. Staying connected even when it’s out of reach, just got easier.
E-300 Long Range Ethernet and PoE, Local AC Powered
COMING SOON! E-300 Long Range Ethernet and PoE, Local PoE Powered
E-300 Long Range Ethernet and PoE, Remote
COMING SOON! E-300 Industrial Long Range Ethernet and PoE, Remote
PoE up to 4,000ft (1200m) over Cat6 cables
Provide up to 57W to the powered device
Reuse existing telephone cable
Interoperable with indoor and outdoor models
Zero touch Plug and Play connectivity
5 year hardware warranty & support at no additional cost
Paired with EC30130 or EI30130
RJ45, RJ45,
Local
Supports 10K Jumbo Frames
Wirespeed Forwarding
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3 Auto-Negotiate
IEEE 802.3x Flow Control
PoE: Support IEEE 802.3af; IEEE802.3at; IEEE 802.3bt
Powered: AC Adapter (included)
Power Supply:
Output: 56 V DC
Input: 100 to 240 V AC 50/60 Hz
Power Consumption: 2W Max
Dimensions: 4.29 x 2.03 x 0.91 in (10.9 x 5.15 x 2.3 cm)
Weight: 0.48 lb (0.22 kg)
Housing: IP30
Mounting: Wall mountable (included)
Operating Temperature: -4 to 140°F (-20 to 60°C)
Storage Temperature: -40 to 185°F (-40 to 85°C)
Operating/Storage Humidity: 5 to 95% (non-condensing)
EMC: CE mark, FCC Part 15 Class A; VCCI Class A
Safety: CE/LVD EN60950-1
Five years (Including power supply)
| Part Number | Description |

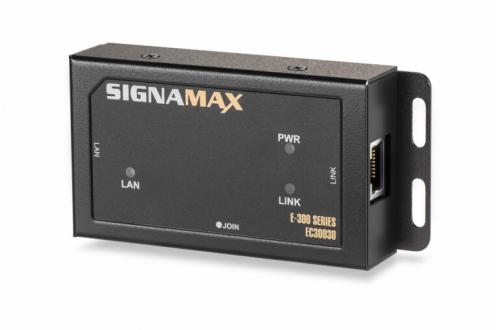

| EC30030 | E-300 Long Range Ethernet & PoE, Local AC Powered |
Pair With :
| Part Number | Description |
| EC30130 | E-300 Ethernet & PoE, Remote |
| EI30130 | E-300 Industrial Long Range Ethernet & PoE, Remote |
