OVERVIEW

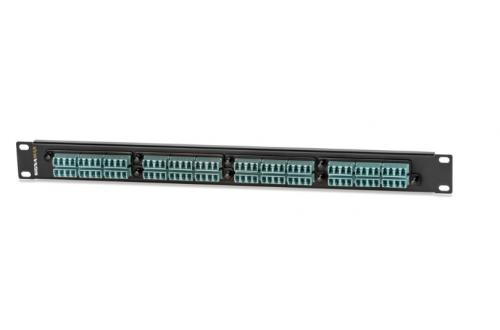

The Signamax High-Density Modular Optical Fiber Panel is designed to hold up to 96 fibers in one RMU. The unique adapter plates allow for a total of four plates to fit across the panel unlike the traditional LGX footprint. The adapter plates are sold individually and are interchangeable making customization simple and quick. With accessories like the fiber management tray designed to accommodate several splice trays and the cable management bar, any installer can keep an installation organized for easy moves, adds, or changes.

KEY FEATURES

Meets EIA/ECA-310-E mounting standards for 19 inches
Increased termination density with four-position design in 1 RMU, up to 96 fibers
Proprietary adapter plate form factor
Integrated for optional cable management accessories including a fiber management tray
Interchangeable adapter plates mount easily by means of plunger locks

SPECIFICATIONS

CONSTRUCTION

Panel: 16-gauge steel with corrosive resistant black finish
Adapter Plates: 0.06″ (1.5 mm) Aluminum with corrosive resistant black finish
Plunger Locks: Polycarbonate/Nylon/Polyester
Adapters: High-impact thermoplastic, UL94V-0 fire-retardant

DIMENSIONS

Panel: 0.75″ D x 19″ W x 1.75″ H (19.05 mm x 482.6 mm x 44.45 mm)
Tray: 10.0″ D x 17.0″ W x 1.75″ H (254 mm x 482.6 mm x 44.45 mm)
Bar: 2.50″ D x 19″ W (63.5 mm x 482.6 mm)

CAPACITY

Adapter Plates/ Cassettes: 4 Max

ENVIRONMENTAL CONDITIONS

Operating Temperature: 14 °F to 140 °F (-10 °C to 60 °C)
Storage Temperature: -40 °F to 158 °F (-40 °C to 70 °C)
Operating RH: 93% Max (non-condensing)

WARRANTY

5-year Limited Component

DOWNLOADS

Information will be available soon

ORDERING INFORMATION

Part Number	Description
RMF4-B	96-Fiber Rack-Mount Modular Optical Fiber Panel

High-Density Modular Adapter Plates

Part Number	Description
UFE1-B-6QHSCM3	12-Fiber (6-Duplex) SC OM3/OM4 Adapter Plate, Type A
UFE1-B-6QHSCSM	12-Fiber (6-Duplex) SC SM Adapter Plate, Type A
UFE1-B-6QHSCSA	12-Fiber (6-Duplex) SC SM APC Adapter Plate, Type A
UFE1-B-6QHLCM3	24-Fiber (6-Quad) LC OM3/OM4 Adapter Plate, Type A
UFE1-B-6QHLCSM	24-Fiber (6-Quad) LC SM Adapter Plate, Type A
UFE1-B-6QHL-B	6-Quad Horizontal Adapter Plate, Type A, Blank

Cable Management Accessories

Part Number	Description
RMF-FMTA-B	Optical Fiber Management Tray
CMB-250-P	Panel-Mount Cable Management Bar, Plastic Body, 2.50″-Deep
CMB-550-M	Panel-Mount Cable Management Bar, Metal Body, 5.5-in Deep
