Category 6A Industrial-Grade Patch Cords

Category 6A Industrial-Grade Patch Cords

OVERVIEW

 Signamax category 6A Screened industrial-grade patch cords provide the same high-level transmission performance as other Signamax cords in-tended for regular commercial applications, but with a robustness capable to withstand harsh environments typical to factory floors, chemical, food processing plants, etc. Unique IP67-rated plug housing design guarantees superb protection against liquid and solid agents’ penetration, against vibrations, and for a long-life reliable performance.

Cords are furnished with dust caps on the protected ends to prevent exposure of unplugged connectors.



KEY FEATURES



  • Industrial-grade plugs are IP67-rated (complete protection against dust, protection against the effects of temporary immersion up to 1 m [3 ft])

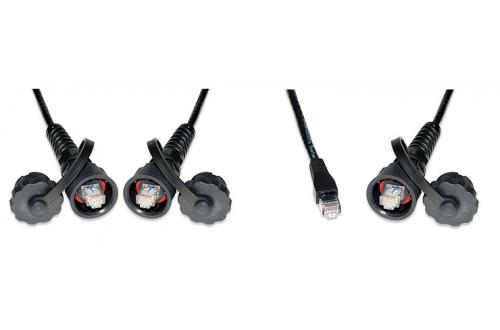

  • Available in IP67-plug-to-IP67-plug and IP67-plug-to-modular plug designs
  • 100% factory transmission tested to component performance per ANSI/TIA-568-C.2 specifications
  • Durable flexible cable strain relief
  • T568A/B wiring scheme compatible
  • Slim-profile snag-free boots on modular plugs of the IP67-plug-to-modular plug design
  • Contact design provides enhanced plug to jack connection integrity
  • Industrial-grade plugs are equipped with dust caps to prevent exposure of unplugged connectors
  • Rated for at least 750 plug insertions providing for the highest level of system reliability



SPECIFICATIONS



  • TRANSMISSION PERFORMANCE

ANSI/TIA-568-C.2: category 6A (1-500 MHz) specifications

  • TRANSMISSION MEDIA

4-pair unscreened 100-Ohm stranded twisted pair (U/UTP)

  • WIRING SCHEME

ANSI/TIA-568-C.2: T568A & T568B
ISO/IEC 11801 2nd Ed.: 8-position conductor/pair assignment (1-2/3-6/4-5/7-8)

  • CORD CONSTRUCTION

– 4 stranded 24-AWG copper pairs in thermoplastic insulation, thermoplastic outer jacket
– high-impact clear polycarbonate 8p8c plugs
– IP67-rated industrial-grade thermoplastic plug housings
– thermoplastic boots
– thermoplastic strain relief

  • MODULAR PLUG

Contacts: phosphor bronze, min 50 μin of gold plating over 100 μin of nickel in contact area
Insulation resistance: min 500 MOhm @ 100 Vdc
Dielectric withstanding voltage: 1,000 Vdc/ac peak contact to contact @ 60 Hz for 1 min
Contact resistance: max 20 mOhm
Current rating: see figure
Assembly: FCC Part 68 Subpart F
Housing: UL listed 94V-0 flame retardant polycarbonate
Retention: 50 N (11 lbf) for 60±5 s
Mating cycle life: min 750 cycles
Tensile strength: ≥ 20 N per wire

  • INDUSTRIAL PLUG HOUSING

– industrial-grade high-impact flame-retardant thermoplastic
– UL 94V-0 rated
– IP67 rated (complete protection against dust, protection against the effects of temporary immersion up to 1 m (3 ft))

  • CABLE

CONDUCTOR:
Material bare copper
Size 24 AWG stranded (7 x 32 AWG strands per conductor)

INSULATION:
Color coding:
blue/white-blue
orange/white-orange
green/white-green
brown/white-brown

SHEATH:
Diameter: < 6 mm (0.25 ± 0.01 in)
Color: see ORDERING INFORMATION
Tensile strength: > 400 N (90 lbf)
Min. bend radius: 25 mm (1 in) recommended

  • ENVIRONMENTAL CONDITIONS

Storage: -40 °C – +70 °C (-40 °F – +158 °F)
Operation: -10 °C – +60 °C (+14 °F – +140 °F)
RH (operation): max non-condensing 93 %

  • COMPLIANCE

ANSI/TIA-568-C.2, IEC 60603-7, IEC 61156-6, IEC 60332-1-2, FCC Part 68 Subpart F, UL 94V-0

  • APPLICATIONS

X.21, V.11, S0, ISDN, CSMA/CD 10BASE-T, 100BASE-TX, 100BASE-T4, 100BASE-T2, 1000BASE-T, 10GBASE-T (up to 55 m (180 ft)), TR 4/16/100, 100BASE-VG, ATM LAN 25/51/155, TP-PMD

  • WARRANTY

5-year limited component warranty
10-year Signamax Link/Channel Warranty
15-year Signamax Extended Component Warranty
25-year Signamax Cabling System Warranty



DOWNLOADS

Information will be available soon

ORDERING INFORMATION



Industrial Plug-to-Industrial Plug



C5E-116IG-XXFT

Part Number Description
C6AS-116IG-3FB Category 6A Screened Patch Cord, Industrial Plug-to-Industrial Plug, 3 ft
C6AS-116IG-5FB Category 6A Screened Patch Cord, Industrial Plug-to-Industrial Plug, 5 ft
C6AS-116IG-7FB Category 6A Screened Patch Cord, Industrial Plug-to-Industrial Plug, 7 ft
C6AS-116IG-10FB Category 6A Screened Patch Cord, Industrial Plug-to-Industrial Plug, 10 ft
C6AS-116IG-15FB Category 6A Screened Patch Cord, Industrial Plug-to-Industrial Plug, 15 ft
C6AS-116IG-20FB Category 6A Screened Patch Cord, Industrial Plug-to-Industrial Plug, 20 ft
C6AS-116IG-25FB Category 6A Screened Patch Cord, Industrial Plug-to-Industrial Plug, 25 ft

Category 6A patch cords are manufactured using commercial grade cable.





Industrial Plug-to-RJ-45

C5E-117IG-XXFT

Part Number Description
C6AS-117IG-3FB Category 6A Screened Patch Cord, Industrial Plug-to-RJ-45, 3 ft
C6AS-117IG-5FB Category 6A Screened Patch Cord, Industrial Plug-to-RJ-45, 5 ft
C6AS-117IG-7FB Category 6A Screened Patch Cord, Industrial Plug-to-RJ-45, 7 ft
C6AS-117IG-10FB Category 6A Screened Patch Cord, Industrial Plug-to-RJ-45, 10 ft
C6AS-117IG-15FB Category 6A Screened Patch Cord, Industrial Plug-to-RJ-45, 15 ft
C6AS-117IG-20FB Category 6A Screened Patch Cord, Industrial Plug-to-RJ-45, 20 ft
C6AS-117IG-25FB Category 6A Screened Patch Cord, Industrial Plug-to-RJ-45, 25 ft

Category 6A patch cords are manufactured using commercial grade cable.
