KEY FEATURES
- Operation with minimum steps – semi-automatic
- Compact and lightweight
- Blade service life – at least 25,000 cuts
- Capacity – one fiber, 0.25- or 0.9-mm coating
- Cutting angle – ≤ 0.5 °

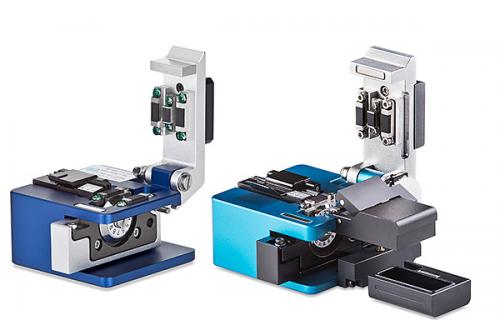

High-Precision Optical Fiber Cleavers
OVERVIEW
High-precision optical fiber cleaver is a required tool in such applications as mechanical/fusion splicing and termination of pre-polished optical fiber connectors.
Recommended as a fiber cleaving tool in termination procedures of Signamax Field-Installable Pre-Polished Optical Fiber Connectors.
SPECIFICATIONS
- OPERATION
semi-automatic
- BLADE
fiber type: single core
primary coating: 125 μm
secondary coating: 250 μm or 900 μm
cutting angle: ≤ 0.5 °
cutting distance:
controlled (built-in ruler):
OFHPC-1: 9-18 mm (0.35-0.71 in)
OFHPC-2: 10-16 mm (0.39-0.63 in)
uncontrolled: 5-30 mm (0.2-1.2 in)
adjustment: height and rotation
blade service life:
cutting positions: 12
each position: ~3600 cuts
minimum total: 25,000 cuts
maximum total: 50,000 cuts
- CAPACITY
capacity: simplex
two positions (grooves) for 0.25- and 0.9-mm coatings
- DIMENSIONS
OFHPC-1:
W 65 mm D 58 mm H 54 mm
W 2.6 in D 2.3 in H 2.1 in
OFHPC-2:
W 58 mm D 92 mm H 54 mm
W 2.6 in D 3.6 in H 2.1 in
- WEIGHT
OFHPC-1: ~260 g (9.2 oz)
OFHPC-2: ~280 g (9.9 oz)
DOWNLOADS
Information will be available soon
ORDERING INFORMATION
| Part Number | Description | |
| OFHPC-1 | High-Precision Optical Fiber Cleaver | |
| OFHPC-2 | High-Precision Optical Fiber Cleaver with Fiber Scrap Collector |
