Rack-Mount Optical Fiber Enclosures_Pre-Configured Optical Fiber Enclosures_Optical Fiber Systems_Premise Connectivity

OVERVIEW

Information will be available soon.

KEY FEATURES

Ready-to-use – field-assembly
Labor cost savings
P/N configurator allows to create dozens of various configurations
Supplied as a complete set – pre-installed populated adapter plates, splice trays, pigtails
Compliance with the standard requirements (fiber bend radii and tension)

SPECIFICATIONS

Information will be available soon.

DOWNLOADS

Information will be available soon

ORDERING INFORMATION

Optical Fiber Trunk Cable Configurator:

(1) ENCLOSURE

(2) ADAPTER PLATE

(3) SPLICE TRAY

(4) PIG TAIL

SLOTS

SERIES

TYPE

SX-DX-QX

COUNT

FIBER

TYPE

COUNT

UFE

XX

X

-P

XX

X

XXX

3: 3 Slot

A: HD2-B

2: ST

S: simplex

6: 6 adapters

1: OM1

C: FST-24A

1-8

0-288

6: 6 Slot

B: HD1-B

4: SC

D: duplex

8: 8 adapters

2: OM2

D: FST-24P

9: 9 Slot

4A: SC APC

Q: quad

12:12 adapters

3: OM3

E: FST-36P

12: 12 Slot

5: FC

4: OM4

5A: FC APC

S: SM

9: LC

9A: LC APC

(1) Enclosure Option

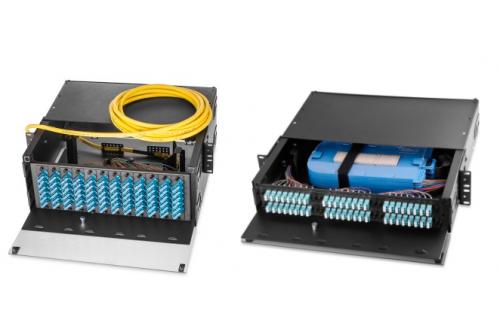

A: HD2-B SERIES RACK-MOUNT OPTICAL FIBER ENCLOSURES

18- to 72-Fiber General-Purpose Rack-Mount Optical Fiber Enclosure
36- to 144-Fiber General-Purpose Rack-Mount Optical Fiber Enclosure
72- to 288-Fiber General-Purpose Rack-Mount Optical Fiber Enclosure

B: HD1-B SERIES RACK-MOUNT OPTICAL FIBER ENCLOSURES

18- to 72-Fiber Premium Rack-Mount Optical Fiber Enclosure
36- to 144-Fiber Premium Rack-Mount Optical Fiber Enclosure
54- to 216-Fiber Premium Rack-Mount Optical Fiber Enclosure
72- to 288-Fiber Premium Rack-Mount Optical Fiber Enclosure

(2) Adapter Plates Option

Adapter Plates Option

Adapter count depends on the adapter type:
ST: 6, 8, 12
FC: 6, 8, 12
SC SX: 6, 8
SC DX: 6
LC DX: 6, 8
LC QX: 6

(3) Splice Trays Option

Splice Trays Option

Splice tray type and count depend on the enclosure:
UFE3HD2-B: Type C (FST-24A): 1 maximum
UFE6HD2-B: Type C (FST-24A): 3 maximum
UFE12HD2-B: Type C (FST-24A): 8 maximum
UFE3HD1-B: Type E or D (FST-24P or 36P): 2 maximum
UFE6HD1-B: Type E or D (FST-24P or 36P): 4 maximum
UFE9HD1-B: Type E or D (FST-24P or 36P): 6 maximum
UFE12HD1-B: Type E or D (FST-24P or 36P): 8 maximum

(4) Pig Tail Fiber

Premium Optical Fiber Pigtails

(4) Trunk Cable

Optical Fiber Trunk Cables

Part Number Example: UFE-9BP9AQ6SE6144
Optical fiber enclosure, 9 × SM APC LC quad 6-adapter plates (216-fiber), 6 × 36-fiber splice trays, 144 × SM APC LC pigtails.
