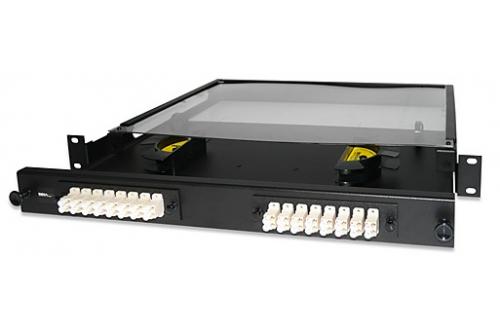

12- to 48-Fiber Low-Profile Optical Fiber Enclosure

12- to 48-Fiber Low-Profile Optical Fiber Enclosure

OVERVIEW

 Signamax rack mount slide-out enclosures provides a simple, high-density, low-profile solution for easy access and management of optical fiber terminations in a one-rack-space design. The rack mount sliding tray enclosures accommodate up to 48 fibers in ST, SC, MT-RJ and LC connector interfaces. Modular design of Signamax optical fiber adapter plates allows creating flexible connection pat-terns based on 6-, 8-, 12-, 16- and 24-fiber ST, SC, LC and MT-RJ connector plates, which can be arranged in 2 adapters in any available connector combination. Adapter plates mount easily by means of plunger locks (“pushpins”). Internal cable anchor points and fiber slack management mechanisms ensure reliable cable fixing, safe cable/fiber tension and bend radii.

Steel case and high-impact black epoxy-powder anticorrosive paint provide excellent protection of optical fiber connections. Optional optical fiber splice trays/cassettes are available when passive uniform interconnection or transfer from buffered to jacketed fibers are required. Enclosures are supplied with a complete set of fastening elements and installation guidelines.



KEY FEATURES



  • Termination density – 12 to 48 optical fibers
  • Adapter plates mount easily by means of plunger locks
  • Rack mount space – 1 RMS
  • Modular adapter plates
  • Transparent top cover
  • 2 adapter plates per enclosure
  • Fiber slack management mechanisms
  • Internal cable anchor points
  • Sliding-out tray
  • Steel case
  • High-impact black epoxy-powder anticorrosive paint
  • Optional optical fiber splice trays/cassettes



SPECIFICATIONS



  • CONSTRUCTION

Die steel
High-impact black epoxy-powder anticorrosive paint
Clear plastic top cover

  • DIMENSIONS

RMS 1
Height 44.45 mm (1.75 in)
Width 482.6 mm (19 in)
Depth 330.2 mm (13 in)

  • WARRANTY

5-year limited component warranty
10-year Signamax Link/Channel Warranty
15-year Signamax Extended Component Warranty
25-year Signamax Cabling System Warranty



DOWNLOADS

Information will be available soon

ORDERING INFORMATION



Part Number Description
SL2M-B 12- to 48-Fiber Rack Mount Optical Fiber Enclosure, Accepts 2 Adapter Plates
Dimensions: 1.75"H x 19"W x 14"D
