OVERVIEW

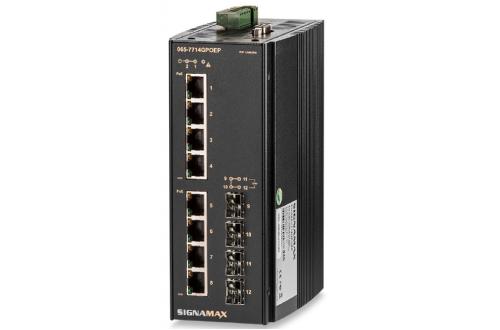

The Signamax 10/100/1000 Managed Layer 2+ Industrial PoE+ Switch is designed to operate in rugged environments with extreme temperature conditions as a 12 port gigabit platform.
Equipped with 8 PoE configurable 10/100/1000 BaseT/TX ports,in combination with 4 Gigabit SFP ports and robust management features. Administrators are able to access management features such as port security and link aggregation via a web browser, telnet, and other interfaces.
Built for harsh environments, the eight Ultra PoE ports provide up to 60 Watts (pre-standard) per port with a total power budget of 240 Watts, making the switch versatile enough to connect with PoE Powered Devices with different bandwidth and power consumption requirements. These capabilities allow serving devices such as outdoor PTZ dome cameras, wireless access points, and roadside communication devices an effortless endeavor.
KEY FEATURES
• Pre-standard 60 Watt PoE+ capabilities with control & scheduling
• Recover-Ring™ capability with < 15 ms recovery
• IP multicast filtering through IGMP snooping V1, V2 & V3
• Supports port-based VLAN and IEEE 802.1Q VLAN tagging and GVRP
• IEEE 802.1p QoS with four priority queues
• Manual, static LACP, and dynamic LACP trunking with automatic link fail-over
• RS-232 console, Telnet, SNMP v1, v2c & v3, RMON, SSL/ SSH, web browser, and TFTP Management
• Supports command line interface in RS-232 console
• Secure Shell /Secure Socket Layer, HTTPS, and IEEE 802.1x RADIUS security standard supported
• Bandwidth egress & ingress rate control
• Port mirroring, both inbound and outbound
• Supports Network Time Protocol (NTP)
SPECIFICATIONS
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3ab 1000BaseT
IEEE 802.3z 1000BaseSX/LX
IEEE 802.3af PoE (15.4 watt)
IEEE 802.3at PoE+ (30 watt)
IEEE 802.1p Priority (Quality of Service [QoS])
IEEE802.1D Spanning Tree Protocol compatible
IEEE802.1w Rapid Spanning Tree Protocol
IEEE802.1s Multiple Spanning Tree Protocol
IEEE 802.1Q Tagged VLAN with GVRP
IEEE 802.3x Flow Control
IEEE 802.1x Access Control
IEEE 802.1AB LLDP
IEEE 802.3ad LACP
8 - RJ-45 10/100/1000BaseT/TX Auto-Negotiation, Auto-MDI/MDIX plus
4 - 1000Base SFP ports
Multicast/Broadcast/Unknown-Unicast Storm suppression enabled.
Per Switch: Power Status 1, Power Status 2
Per RJ-45 Port: PoE status: (Orange)
Per SFP Port: Link/Activity: (Green)
Latency: <4.5 μs (LIFO).
Throughput, per port: 1.48810 million pps (64-byte packets)
Switch Fabric Speed: 24 Gbps (non-blocking, wire speed performance)
MAC Address Capacity: 16 K MAC addresses; Up to 1024 Static Secure MAC addresses
Frame Buffer: 12 MB
Jumbo Frame Support: up to 9 Kbytes frame size
Port Mirroring: Inbound and Outbound, assignable to any port
Secure Socket Layer / Secure Shell (SSL/SSH)
IEEE 802.1x access control with RADIUS authentication Management Access Policy Control (ACL)
- Internetworking Protocols Supported
Recover-Ring™: Supports recovery of ring-based network architecture in < 15 ms
Proprietary.
Link Aggregation Control Protocol Trunking: Up to 4 LACP trunking groups; up to 8 ports for each group
GARP VLAN Registration Protocol / Generic Attribute Registration Protocol:
IEEE 802.1Q with GVRP/ GARP
Multicasting:
Supports IP Multicast Filtering via IGMP Snooping V1, V2 & V3
Spanning Tree Protocol / Rapid Spanning Tree /Multiple Spanning Tree
Protocol: IEEE 802.1D/1w/1s
Link Layer Discovery Protocol: IEEE 802.1AB
Port-based VLAN
IEEE 802.1Q Tag-based VLAN; up to 255 active VLANs possible
Supports 802.1p QoS with four level priority queue
Supports two scheduling types, Strict Priority and Weighted Round Robin (WRR) with user-variable weighting.
Supports bandwidth rate limiting; Ingress/Egress
Access Methods: Console port access via RS-232C RJ-45 local console serial
port, Telnet remote access, SNMP agent, and Web browser.
Software Upgrade Capability: Via TFTP
SNMP v1, v2c, and v3 Network Management
RFC 1213 MIB (MIB-2)
RFC 1757 RMON MIB
Statistics Group 1
History Group 2
Alarm Group 3
Event Group 9
RFC 1493 Bridge MIB
P-Bridge MIB
Q-Bridge MIB
- Electrical Characteristics
Maximum Switch Power Consumption w/o PoE connections: 20 Watts.
Maximum PoE+ Power Consumption:
Full load with 8 ports PoE+ (30 W for each PoE port): 240 Watts.
DC Input Range: 52 - 57 V DC, connected via redundant terminal block.
- Environmental Requirements
Operating Temperature: -40°F to 167°F (-40°C to 75°C)
Tested to: -40°F to 185°F (-40°C to 85°C)
Storage Temperature: -40°F to 185°F (-40°C to 85°C)
Operating Humidity: 5% to 95% (non-condensing)
Dimensions: 2.37” W x 4.55” D x 5.45” H (72 mm x 140 mm x 170 mm)
Housing: IP30 protection, aluminum case.
Pre-attached DIN-rail and wall mounting kit included.
Weight: 2.42 lbs (1.1 Kg)
CE
Safety: UL61010 (pending)
EMI: FCC Part 15B, Class A; EN61000-6-4; EN55022;
EN61000-3-2; EN61000-3-3
EMS:ESD Standards (EN61000-4-2);
Radiated FRI Standards (EN61000-4-3);
Burst Standards (EN61000-4-4); Surge Standards (EN61000-4-5);
Induced RFI Standards (EN61000-4-6);
Magnetic Field Standards (EN61000-4-8);
Environmental Test Compliance:
Vibration Resistance (IEC 60068-2-6 Fc);
Operation/Storage/Transport; Criterion 3 Shock (IEC 60068-2-27 Ea)
Half-Sine Shock Pulse; Operation; Half-Sine Shock Pulse; Storage/Transport;
Free Fall (IEC60068-2-32 Ed)
Five Years
