Field-Installable Modular Plugs

Field-Installable Modular Plugs

OVERVIEW

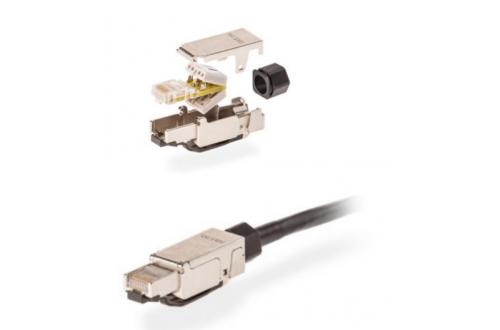

The Signamax Field-Installable Modular Plugs are designed for termination of distribution cables and equipment cables connecting directly to such terminal and field devices as security cameras, industrial electronics, and for patching in environments where hardened and reliable connections are required. Plugs are also equipped for termination of stranded or solid conductor cables. PCB-based plug design guarantees high-quality termination in the field, while toolless termination feature provides quick task completion.

KEY FEATURES

  • Guaranteed performance per ANSI/TIA-568-C.2 & ISO/IEC 11801 specifications
  • 360-degree screen coverage option for overall solid-metal shielding
  • Compatible with all Signamax modular connectors
  • Rated for at least 750 insertion cycles
  • Toolless field termination with PCB-based electrical design
  • Compatible with solid and stranded conductors
  • Easy-to-read T568A/B wiring scheme color-coded label

SPECIFICATIONS

  • TRANSMISSION PERFORMANCE

C5E: meets ANSI/TIA-568-C.2 category 5e (1 MHz–100 MHz) patch cord requirements
C6: meets ANSI/TIA-568-C.2 category 6 (1 MHz–250 MHz) patch cord requirements
C6A: meets ANSI/TIA-568-C.2 category 6A (1 MHz–500 MHz) patch cord requirements

  • TRANSMISSION MEDIA

Unscreened (U/UTP) twisted pair
Screened (U/STP, F/UTP, F/STP, S/UTP, S/STP, SF/UTP, SF/STP) twisted pair
Min cable diameter: 6 mm (0.24 in)
Max cable diameter: 8 mm (0.32 in)

  • PLUG TYPE

8P8C (8-position, 8-contact) “RJ45” style

  • ELECTRICAL

Insulation resistance: Min 500 MOhm @ 100 Vdc
Dielectric withstanding voltage:
1,000 Vdc/ac peak contact-to-contact @ 60 Hz for 1 min
1,500 Vdc/ac peak contact-to-screen @ 60 Hz for 1 min (screened only)

  • CONSTRUCTION

Housing:
   KRJS45FI-XXX/KRJS45DA-XXX: Zinc alloy
   KRJ45FI-XXX: High impact, flame retardant plastic, UL94V-0
Contact pin: phosphor-bronze alloy plated with 50 μin of gold
IDC: 110 type, phosphor-bronze alloy with 100-μin 100% tin alloy

  • MECHANICAL

Mating Cycle Life: Min 750 cycles
Wiring Scheme: ANSI/TIA-568-C.2: T568A/T568B
ISO/IEC 11801 2nd Ed.: 8-position pin/pair assignment (1-2/3-6/4-5/7-8)
Wire Gauge: 23 to 26 AWG (0.644 mm–0.511 mm) solid or stranded copper conductors

  • DIMENSIONS

1.96” L x 0.54” W x 0.59” H (49.7 mm x 13.8 mm x 15.0 mm)

  • ENVIRONMENTAL CONDITIONS

Operation: 14 °F to 140 °F (-10 °C to 60 °C)
Storage: -40 °F to 158 °F(-40 °C to 70 °C)
Operating RH: 93% Max (non-condensing)

  • COMPLIANCE

ANSI/TIA-568-C.2, IEC 60603-7, FCC Part 68 Subpart F, UL 94V-0

  • APPLICATIONS

Category 5e:
X.21, V.11, S0, ISDN, CSMA/CD 10BASE-T, 100BASE-TX, 100BASE-T4, 100BASE-T2, 1000BASE-T,
10GBASE-T (up to 25 m (82 ft)), TR 4/16/100, 100BASE-VG, ATM LAN 25/51/155, TP-PMD
Category 6:
X.21, V.11, S0, ISDN, CSMA/CD 10BASE-T, 100BASE-TX, 100BASE-T4, 100BASE-T2, 1000BASE-T,
10GBASE-T (up to 55 m (180 ft)), TR 4/16/100, 100BASE-VG, ATM LAN 25/51/155, TP-PMD
Category 6A:
X.21, V.11, S0, ISDN, CSMA/CD 10BASE-T, 100BASE-TX, 100BASE-T4, 100BASE-T2, 1000BASE-T, 10GBASE-T, TR 4/16/100,
100BASE-VG, ATM LAN 25/51/155, TP-PMD

  • WARRANTY

  5-year limited component warranty
10-year Signamax Link/Channel Warranty
15-year Signamax Extended Component Warranty
25-year Signamax Cabling System Warranty

ORDERING INFORMATION

Screened Plugs

Part Number Description
KRJS45FT-C5E Category 5E Screened Field-Installable Modular Plug
KRJS45FT-C6C Category 6 Screened Field-Installable Modular Plug
KRJS45FT-C6A Category 6A Screened Field-Installable Modular Plug



Unscreened Plugs



Part Number Description
KRJ45FT-C5E Category 5E Unscreened Field-Installable Modular Plug
KRJ45FT-C6C Category 6 Unscreened Field-Installable Modular Plug
KRJ45FT-C6A Category 6A Unscreened Field-Installable Modular Plug
