DE-Series Patch Panel and Cassette Assemblies

DE-Series Patch Panel and Cassette Assemblies

OVERVIEW

 Information will be available soon.

KEY FEATURES

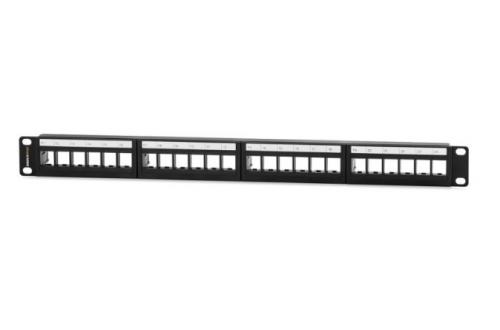

  •  Four six-port cassettes in 1-RMS panel
  • Convenient approach to allow quick deployment of any copper cabling project
  • Quick and easy insertion and removal via rear side quick-release levers
  • Transmission performance meets or exceeds ISO/IEC 11801 and ANSI/TIA-568-C.2
  • Cassette assemblies are factory pre-terminated, tested, and labeled on both ends



SPECIFICATIONS

 Information will be available soon.



DOWNLOADS

Information will be available soon

ORDERING INFORMATION



Part Number Description
24DE-4CT 24-Port 4-Cassette Patch Panel, 1.75”H




Category 6A Unscreened Pre-Terminated Cassette Assemblies

Part Number Description
6LDE-C6A-CC-R-FX 6-Leg Category 6A Unscreened, Cassette-to-Cassette, U/UTP CMR Cable
6LDE-C6A-CJ-R-FX 6-Leg Category 6A Unscreened Cassette-to-Jacks, U/UTP CMR Cable
LDE-C6A-CB-R-FX 6-Leg Category 6A Unscreened Cassette-to-Blunt, U/UTP CMR Cable

For plenum-rated (CMP) cable substitute P for R in P/N.
For length substitute X for length in feet, minimum – 010 (10 ft), maximum – 295 (295 ft).
Standard cable jacket color is blue, other colors are special orders.

Category 6 Unscreened Pre-Terminated Cassette Assemblies



Part Number Description
6LDE-C6-CC-R-FX 6-Leg Category 6 Unscreened, Cassette-to-Cassette, U/UTP CMR Cable
6LDE-C6-CJ-R-FX 6-Leg Category 6 Unscreened, Cassette-to-Jacks, U/UTP CMR Cable
6LDE-C6-CP-R-FX 6-Leg Category 6 Unscreened, Cassette-to-Plug, U/UTP CMR Cable
6LDE-C6-CB-R-FX 6-Leg Category 6 Unscreened, Cassette-to-Blunt, U/UTP CMR Cable

For plenum-rated (CMP) cable substitute P for R in P/N.
For length substitute X for length in feet, minimum – 010 (10 ft), maximum – 295 (295 ft).
Standard cable jacket color is blue, other colors are special orders.

Category 5e Unscreened Pre-Terminated Cassette Assemblies



Part Number Description
6LDC-C5E-CC-R-FX 6-Leg Category 5e Unscreened, Cassette-to-Cassette, U/UTP CMR Cable
6LDC-C5E-CJ-R-FX 6-Leg Category 5e Unscreened, Cassette-to-Jacks, U/UTP CMR Cable
6LDC-C5E-CP-R-FX 6-Leg Category 5e Unscreened, Cassette-to-Plug, U/UTP CMR Cable
6LDC-C5E-CB-R-FX 6-Leg Category 5e Unscreened, Cassette-to-Blunt, U/UTP CMR Cable

For plenum-rated (CMP) cable substitute P for R in P/N.
For length substitute X for length in feet, minimum – 010 (10 ft), maximum – 295 (295 ft).
Standard cable jacket color is blue, other colors are special orders.





For further questions on configuring your Pre-Terminated solution, please contact a Signamax Authorized Distributor.
