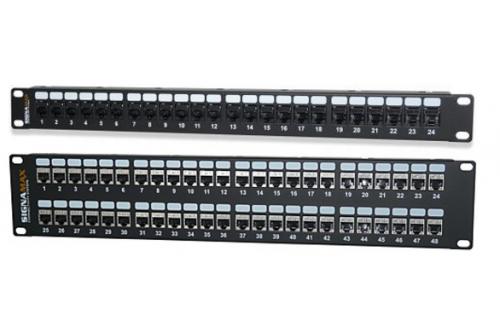

Category 6A High-Density Feed-Thru Patch Panels

Overview
Key Features
Specifications
Downloads
Ordering Information

OVERVIEW

Category 6A High-Density Feed-Thru Panels can be used when connecting equipment in a telecommunications room and necessary to cross-connect using patch cables, in order to interface to the distribution cabling system. Signamax High-Density Feed-Thru Patch Panels provide 24-, 48- and 72- modular coupling ports, while maintaining category 6A performance. Panels are available in either an unscreened or screened versions and are provided with a newly designed cable management bar that easily mounts to the back of the panel without the need for mounting screws. This cable management bar features improved cable routing and strain relief.

KEY FEATURES

24-, 48- and 72-port sizes.
Accommodates both unscreened and screened twisted-pair keystone inline couplers.
Couplers feature straight-thru wiring scheme compatible with T568A, T568B cabling and any other wiring schemes up to 8 conductors.
Coupler contact design provides enhanced plug to jack connection integrity and protects against damage caused by insertion of 4 or 6 position plugs.
Applications – cross-connections, horizontal consolidation points, horizontal connection points in building automation cabling, etc.
Maximum strength and durability construction.
Snap-in rear cable management bar.
Couplers are rated for at least 750 plug insertions providing for the highest level of system reliability.

SPECIFICATIONS

Information will be available soon.

DOWNLOADS

Information will be available soon

ORDERING INFORMATION

Part Number	Description
24458FTHD-C6A	24-Port Category 6A Unscreened High-Density Feed-Thru Patch Panel, 1.75″ High
48458FTHD-C6A	48-Port Category 6A Unscreened High-Density Feed-Thru Patch Panel, 3.50″ High
72458FTHD-C6A	72-Port Category 6A Unscreened High-Density Feed-Thru Patch Panel, 3.50″ High
24458SFTHD-C6A	24-Port Category 6A Screened High-Density Feed-Thru Patch Panel, 1.75″ High
48458SFTHD-C6A	48-Port Category 6A Screened High-Density Feed-Thru Patch Panel, 3.50″ High
72458SFTHD-C6A	72-Port Category 6A Screened High-Density Feed-Thru Patch Panel, 3.50″ High
