Category 5e MT-Series Screened Angled Patch Panels

Category 5e MT-Series Screened Angled Patch Panels

OVERVIEW

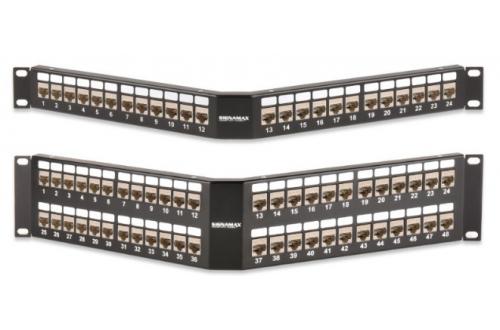

 The Signamax Category 5e MT-Series Screened Angled Patch Panels are designed to offer a complete panel and jack option. The MT-series includes the option of a 24, 48, or 72 port panel, and black snap-in keystone jacks. This space saving angled design allows easy termination and flexibility for future adds, moves or changes, giving installers the perfect cost effective solution for Category 5e applications.

The keystone jacks’ solid-metal shielding eliminates EMI, and in lieu of fixed termination, a standard single-position 110 termination tool or a specialized Signamax multi-pair tool can be used. For easy circuit identification, each port designation features a labeling area with a reference number. The keystone jacks are rated for a minimum of 750 plug insertions providing for the highest level of system reliability.



KEY FEATURES



  • Exceeds ANSI/TIA-568-C.2 transmission performance specifications
  • Supports TIA-568-C.2 category 5e 100 meter channel performance
  • Overall solid-metal shielding design for 360° screen coverage
  • Removable rear cable management bar
  • Improved wire retention and ease of termination with rear 110 type contacts
  • Slim profile for the highest density applications
  • Angled design eliminates the need for cable management panels saving space
  • Cold-rolled steel construction for maximum strength and durability
  • Easy-to-read T568A/B wiring scheme color-coded label

SPECIFICATIONS



  • TRANSMISSION PERFORMANCE

ANSI/TIA-568-С.2:  exceeds category 5e (1-100 MHz) component specifications

  • TRANSMISSION MEDIA

Unscreened twisted pair (U/UTP) or screened (U/STP, F/UTP, F/STP, S/UTP, S/STP, SF/UTP, SF/STP) twisted pair
Cable Diameter:
Min: 0.20” (5 mm)
Max: 0.35” (9 mm)

  • JACK TYPE

8p8c (8-position, 8-contact) “RJ45” style

  • WIRING SCHEME

ANSI/TIA-568-C.2: T568A & T568B
ISO/IEC 11801 2nd Ed.: 8-position pin/pair assignment (1-2/3-6/4-5/7-8)

  • WIRE GAUGE

22 to 24 AWG (0.644 to 0.511 mm)

  • ELECTRICAL

Insulation Resistance: Min 500 MOhm @ 100 Vdc
Dielectric Withstanding Voltage: 1,000 Vdc/ac peak contact-to-contact @ 60 Hz for 1 min
Spring Wire Contact Resistance: Max 20 mOhm
IDC Contact Resistance: Max 2.5 mOhm
Current Rating: Refer to downloadable spec sheet

  • CONSTRUCTION

Panel:
     Front: Steel with corrosive resistant black finish
     Rear: Steel
Jack:
     Housing: High impact thermoplastic, UL94V-0 fire retardant
     Spring Wire:
Phosphor bronze alloy plated with 50 μin of gold over 70 to 100 μin of nickel
     IDC:
110 type, phosphor bronze alloy with 100 μin 100% tin alloy

  • MECHANICAL

Total Contact Force: Min 800 g for 8 wire leads with FCC compliant 8p8c plug
Retention: 50 N (11 lbf) for 60 ± 5 s
Mating Cycle Life: Min 750 cycles with FCC compliant 8p8c plug

  • MOUNTING DIMENSIONS

Panel: 19-in rack mountable
Depth: 4.0” (102 mm)
Height:
24458SA-C5E: 1 RMU (1.75” (44.45 mm))
48458SA-C5E: 2 RMU (3.50” (88.90 mm))
72458SA-C5E: 2 RMU (3.50” (88.90 mm))
Jack: 1.67” D x 0.58” W x 1.02” H (42.4 mm x 14.6 mm x 25.8 mm)

  • ENVIRONMENTAL CONDITIONS

Operating Temperature: 14 °F to 140 °F (-10 °C to 60 °C)
Storage Temperature: -40 °F to 158 °F (-40 °C to 70 °C)
Operating RH: 93% Max (non-condensing)

  • COMPLIANCE

ANSI/TIA-568-C.2, IEEE 802.3 ab, FCC Part 68 Subpart F, UL 94V-0, UL 1863, IEC 60603-7

  • APPLICATIONS

X.21, V.11, S0, ISDN, CSMA/CD 10BASE-T, 100BASE-TX, 100BASE-T4, 100BASE-T2, 1000BASE-T, 10GBASE-T, TR 4/16/100, 100BASE-VG, ATM LAN 25/51/155, TP-PMD

  • WARRANTY

 5-year Limited Component
10-year Signamax Base Trunk
15-year Signamax Extended Component
25-year Signamax Cabling System



DOWNLOADS

Information will be available soon

ORDERING INFORMATION



Part Number Description
24458SA-C5E 24-Port Category 5e MT-Series Screened Angled Patch Panel, 1.75”H
48458SA-C5E 48-Port Category 5e MT-Series Screened Angled Patch Panel, 3.50”H
72458SA-C5E 72-Port Category 5e MT-Series Screened Angled Patch Panel, 3.50”H


Panels are supplied as a kit, which includes the panel, black MT-Series unscreened jacks per port count, and cable ties.
For panels with other keystone jack color options contact Customer Service.
