Patch Cord and Cable Management Panels

Patch Cord and Cable Management Panels

OVERVIEW

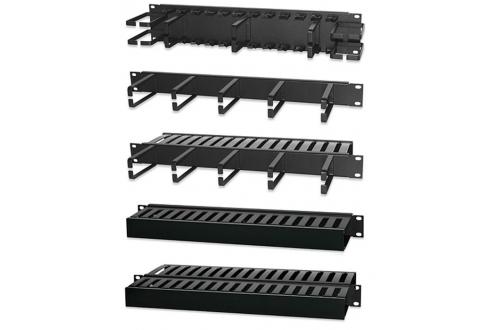

Patch cord and cable management panels provide a simple means of organizing and managing cables, either on the front or rear of an equipment rack or enclosure. Cable management panels are available in several styles with features such as horizontal and verti-cal rings, individual wire saddles, and slotted duct. All panels allow management and routing of both bundled and individual cables. Cable management panels are available in 1.75" high (1 rack space) and 3.50" high (2 rack spaces) and are supplied with mounting hardware.

KEY FEATURES

  • 19-inch rack mount standard
  • EIA standard-spaced holes for mounting
  • Available in 1.75" high (1 RMS) and 3.50" high (2 RMS)
  • Cable management on front or rear of equipment rack or enclosure
  • Management and routing of both bundled and individual cables
  • Horizontal and vertical rings, individual wire saddles, slotted ducts
  • Durable steel construction, high-impact black epoxy-powder anticorrosive paint

SPECIFICATIONS

  • CONSTRUCTION

Panel body: steel, high-impact black epoxy-powder anticorrosive paint
Rings: steel, high-impact black epoxy-powder anticorrosive paint
Clips: high impact thermoplastic, UL94V-0 fire retardant
Ducts: high impact thermoplastic, UL94V-0 fire retardant
Duct covers: high impact thermoplastic, UL94V-0 fire retardant

  • ENVIRONMENTAL CONDITIONS

Storage: -40°C - +70°C (-40°F - +158°F)
Operation: -10°C - +60°C (+14°F - +140°F)
RH (operation): max non-condensing 93%

  • DIMENSIONS

DOWNLOADS

Download DatasheetDownload Datasheet

ORDERING INFORMATION




CMP-175                CMP-350
Panels with Distribution Rings and Routing Clips
Part Number Description
CMP-175 Panel with (2) 3" x 3" Vertical Distribution Rings and Routing Clips, 1 RMS
CMP-350 Panel with (2) 3" x 3" Vertical Distribution Rings, (4) 3" x 3" Horizontal Distribution Rings and Routing Clips, 2 RMS




CMP-175-A                  CMP-350-A
Panels with Distribution Rings



Part Number Description
CMP-175-A Panel with (5) 1.75" x 3" Horizontal Distribution Rings, 1 RMS
CMP-350-A Panel with (5) 3" x 3" Horizontal Distribution Rings, 2 RMS

CMP-175-AD                     CMP-350-AD
Panels with Distribution Rings and Wiring Duct
Part Number Description
CMP-175-AD Panel with (5) 1.75" x 3" Horizontal Distribution Rings and 1.5" W x 4" H Wiring Duct on Back, 1 RMS
CMP-350-AD Panel with (5) 3" x 3" Horizontal Distribution Rings and 3" W x 4" H Wiring Duct on Back, 2 RMS

CDP-175                       CDP-350
Panels with Front Wiring Duct
Part Number Description
CDP-175 Panel with 1.5"W x 3"H Wiring Duct on Front, 1 RMS
CDP-350 Panel with 3"W x 3"H Wiring Duct on Front, 2 RMS

CDP-175-A                         CDP-350-A
Panels with Front and Back Wiring Duct
Part Number Description
CDP-175-A Panel with 1.5"H x 3"D Wiring Duct on Front and 1.5" W x 3.75" H Wiring Duct on Back, 1 RMS
CDP-350-A Panel with 3" H x 3" D Wiring Duct on Front and 3" W x 3.75" H Wiring Duct on Back, 2 RMS
