KEY FEATURES
- 19-inch rack mount standard
- EIA standard-spaced 10-32 holes
- 1-2-3-4-5 RMS
- 6-inch standoff depth
- Cable access holes on both the rear and sides
- Right or left hand swing
- 16-gauge steel with a black polyurethane finish

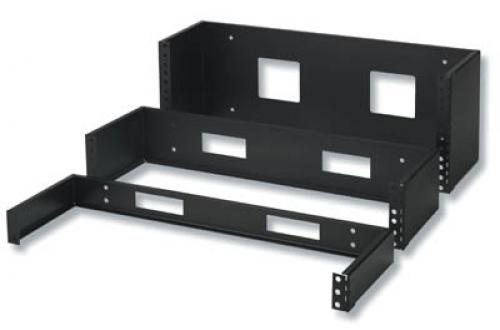

Hinged Wall Mount Brackets
OVERVIEW
Hinged Wall Mount Brackets are designed for mounting one or more 19-inch panels and have a 6-inch standoff depth. Brackets are constructed from 16-gauge steel with a black polyurethane finish. Brackets have cable access holes on both the rear and sides of the brackets to allow a variety of cable access configurations. Brackets can be mounted for either right or left hand swing.
SPECIFICATIONS
Information will be available soon.
DOWNLOADS
Information will be available soon
ORDERING INFORMATION
| Part Number | Description | |
| HWB-175 | 1-RMS Hinged Wall Mount Bracket, 1.75″H x 6″D | |
| HWB-350 | 2-RMS Hinged Wall Mount Bracket, 3.50″H x 6″D | |
| HWB-525 | 3-RMS Hinged Wall Mount Bracket, 5.25″H x 6″D | |
| HWB-700 | 4-RMS Hinged Wall Mount Bracket, 7.00″H x 6″D | |
| HWB-875 | 5-RMS Hinged Wall Mount Bracket, 8.75″H x 6″D |
