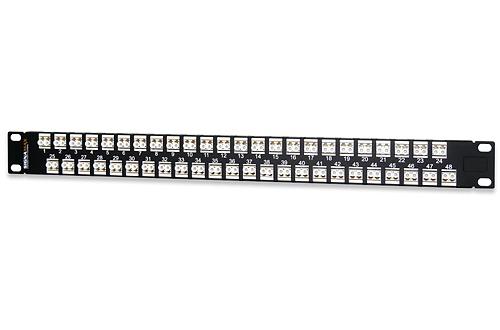

High-Density 1-RMS Optical Fiber Panels

High-Density 1-RMS Optical Fiber Panels

OVERVIEW

Signamax offers a range of economy optical fiber patch panels for SC and LC connections. These rack-mount panels are available in 48-port (48-, and 96-fiber) size based on standard Signamax optical fiber keystone jacks and are ideal where space is limited as compared to the standard-density optical fiber panels or enclosures. These high-density panels provide increased termination density due to more compact adapter population. High-density panels are equipped with rear cable management bar when there is a need to provide support for bulky cables and/or maintain required cable bend radii.

KEY FEATURES

  • SC and LC connections
  • Available in 48-port (48- and 96-fiber) size
  • Based on standard Signamax optical fiber keystone jacks
  • Equipped with rear cable management bar

SPECIFICATIONS

Information will be available soon.

DOWNLOADS

Information will be available soon

ORDERING INFORMATION

SC Optical Fiber Panels

Part Number Description
48HD1SC-FT 48-Fiber (48-Simplex) High-Density SC MM Panel, 1.75"H
48HD1SC-FT-C 48-Fiber (48-Simplex) High-Density SC SM Panel, 1.75"H



LC Optical Fiber Panels

Part Number Description
48HD1LC-FT 96-Fiber (48-Duplex) High-Density LC MM Panel, 1.75"H
48HD1LC-FT-C 96-Fiber (48-Duplex) High-Density LC SM Panel, 1.75"H
