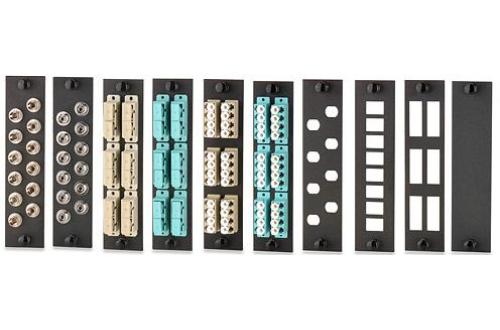

Optical Fiber Adapter Plates

Optical Fiber Adapter Plates

OVERVIEW

Specify optical fiber adapter plates for ST-, FC-, SC-, MT-RJ- or LC-type connections. Adapter plates are compatible with all Signamax wall and rack mount optical fiber enclosures and available in 6 simplex and duplex, 8 simplex and duplex and 6 quad configurations with fiber counts of up to 24 per adapter plate. They mount easily by means of plunger locks ("pushpins"). ST, FC, SC and LC connec-tor plates can be equipped with 62.5-µm and 50-µm adapters suitable for multimode applications or a singlemode only version is available with adapters outfitted with zirconia ceramic sleeves. Our SC and LC 10G multimode laser optimized adapter uses zirconia ceramic sleeves.

KEY FEATURES

  • ST-, FC- SC-, MT-RJ-, LC-type connections
  • UPC and APC singlemode versions
  • Compatible with all Signamax wall and rack mount optical fiber enclosures
  • Available in
     - 6 simplex and duplex
     - 8 simplex and duplex
     - 6 quad configurations
  • Fiber counts up to 24 per adapter plate
  • Equipped with plunger locks ("pushpins")
  • Phosphor bronze and zirconia ceramic sleeves
  • Adapters are standard color-coded
  • Blank adapter plates are available to cover unoccupied slots
  • Unpopulated adapter plates are available for field assembling and building mixed configurations

SPECIFICATIONS

  • TRANSMISSION PERFORMANCE

ANSI/TIA-568-C.3: meets or exceeds component specifications

  • TRANSMISSION MEDIA

ST, FC, MT-RJ:
Multimode OM1, OM2
Singlemode OS1, OS2

SC, LC:
Multimode OM1, OM2, OM3, OM4
Singlemode OS1, OS2

  • ADAPTER/CONNECTOR TYPE

ST (BFOC/2.5)
FC
SC (568SC, SFOC/2.5)
LC
MT-RJ

  • INSERTION LOSS

ST, FC, SC, LC:
Metal sleeve: 0.10 dB typical, 0.30 dB maximum
Zirconia sleeve: 0.05 dB typical, 0.20 dB maximum

MT-RJ:
MM: 0.25 dB typical
SM: 0.20 dB typical

  • MECHANICAL

ST, FC, SC, LC:
Durability: < 0.1 dB typical change, 500 mating cycles
Sleeve/ferrule withdraw force: 1.96 N (200 gf) (0.44 lbf) - 5.88 N (600 gf) (1.32 lbf)
Mating cycle life: min 500 cycles

MT-RJ:
Durability: < 0.1 dB typical change, 500 mating cycles
Mating cycle life: min 500 cycles

  • CONSTRUCTION

Adapter plate: body: steel, black epoxy-powder anticorrosive paint
plunger locks: high-impact thermoplastic, UL94V-0 fire-retardant

ST, FC:
Adapter: housing: stainless steel
sleeve: MM: phosphor bronze alloy
SM: zirconia ceramic

SC, LC:
Adapter: housing: high-impact thermoplastic, UL94V-0 fire-retardant
sleeve: MM: phosphor bronze alloy
SM: zirconia ceramic

MT-RJ:
Adapter: housing: high-impact thermoplastic, UL94V-0 fire-retardant
sleeve: phosphor bronze alloy

  • ADAPTER FOOTPRINT

Standard ST simplex footprint
Standard FC simplex footprint
Standard SC simplex and duplex footprint
Standard LC duplex and quad footprint
Standard MT-RJ footprint

  • ADAPTER PLATE MOUNTING DIMENSIONS

H 31.0 mm W 131.0 mm
H 1.21 in W 5.14 in
Mounting holes/plunger lock spacing: 119.0 mm (4.69 in) center-to-center

  • ENVIRONMENTAL CONDITIONS

Operation: -40 °C - +75 °C (-40 °F - +167 °F)

  • COMPLIANCE

TIA FOCIS, ANSI/TIA-568-C.3, GR-326

  • APPLICATIONS

ST, MT-RJ:
Ethernet 10/100, TR 4/16/100, 100VG-Any LAN, ATM, ISO/IEC 8802-3: FOIRL

FC, SC, LC:
Ethernet 10, 100, 1000, 10G, 40G, 100GBASE, ANSI X3.166, ANSI X3.184, Fibre Channel, ITU-T G.984,
ITU-T G.987, IEEE 802.3av, TR 4/16/100, 100VG-Any LAN, ATM, ISO/IEC 8802-3: FOIRL

  • WARRANTY

5-year limited component warranty
10-year Signamax Link/Channel Warranty
15-year Signamax Extended Component Warranty
25-year Signamax Cabling System Warranty




ORDERING INFORMATION

ST Adapter Plates

OM1/OM2 Adapter Plate

Part Number Description
UFE-B-06ST 6-Fiber (6-Simplex) ST MM Adapter Plate, Phosphor Bronze Sleeve
UFE-B-08ST 8-Fiber (8-Simplex) ST MM Adapter Plate, Phosphor Bronze Sleeve
UFE-B-12ST 12-Fiber (12-Simplex) ST MM Adapter Plate, Phosphor Bronze Sleeve


UPC SM Adapter Plate

Part Number Description
UFE-B-06ST-C 6-Fiber (6-Simplex) ST SM Adapter Plate, Ceramic Sleeve
UFE-B-08ST-C 8-Fiber (8-Simplex) ST SM Adapter Plate, Ceramic Sleeve
UFE-B-12ST-C 12-Fiber (12-Simplex) ST SM Adapter Plate, Ceramic Sleeve


Empty Adapter Plate

Part Number Description
UFE-B-06ST-B 6 ST Adapter Plate, No Adapters
UFE-B-08ST-B 8 ST Adapter Plate, No Adapters
UFE-B-12ST-B 12 ST Adapter Plate, No Adapters



Multimode ST adapters use phosphor bronze sleeve. Singlemode ST adapters use zirconia ceramic sleeve.



FC Adapter Plates

OM1/OM2 Adapter Plate

Part Number Description
UFE-B-06FC 6-Fiber (6-Simplex) FC MM Adapter Plate, Phosphor Bronze Sleeve
UFE-B-08FC 8-Fiber (8-Simplex) FC MM Adapter Plate, Phosphor Bronze Sleeve
UFE-B-12FC 12-Fiber (12-Simplex) FC MM Adapter Plate, Phosphor Bronze Sleeve


UPC SM Adapter Plate

Part Number Description
UFE-B-06FC-C 6-Fiber (6-Simplex) FC SM Adapter Plate, Ceramic Sleeve
UFE-B-08FC-C 8-Fiber (8-Simplex) FC SM Adapter Plate, Ceramic Sleeve
UFE-B-12FC-C 12-Fiber (12-Simplex) FC SM Adapter Plate, Ceramic Sleeve


Empty Adapter Plate

Part Number Description
UFE-B-06FC-B 6 FC Adapter Plate, No Adapters
UFE-B-08FC-B 8 FC Adapter Plate, No Adapters
UFE-B-12FC-B 12 FC Adapter Plate, No Adapters


Multimode FC adapters use phosphor bronze sleeve. Singlemode FC adapters use zirconia ceramic sleeve.



MPO Adapter Plates



Part Number Description
UFE-B-06MPO-A 6-Ports (72-Fiber) MPO Adapter Plate, Black, Type A
UFE-B-06MPO-B 6-Ports (72-Fiber) MPO Adapter Plate, Black, Type B
UFE-B-08MPO-A 8-Ports (96-Fiber) MPO Adapter Plate, Black, Type A
UFE-B-08MPO-B 8-Ports (96-Fiber) MPO Adapter Plate, Black, Type B




SC Adapter Plates

OM1/OM2 Adapter Plate

Part Number Description
UFE-B-06SC 6-Fiber (6-Simplex) SC MM Adapter Plate, Beige Adapters, Phosphor Bronze Sleeve
UFE-B-08SC 8-Fiber (8-Simplex) SC MM Adapter Plate, Beige Adapters, Phosphor Bronze Sleeve
UFE-B-12SC 12-Fiber (6-Duplex) SC MM Adapter Plate, Beige Adapters, Phosphor Bronze Sleeve


OM3/OM4 Adapter Plate

Part Number Description
UFE-B-06SC-G 6-Fiber (6-Simplex) SC MM LOF Adapter Plate, Aqua Adapters, Ceramic Sleeve
UFE-B-08SC-G 8-Fiber (8-Simplex) SC MM LOF Adapter Plate, Aqua Adapters, Ceramic Sleeve
UFE-B-12SC-G 12-Fiber (6-Duplex) SC MM LOF Adapter Plate, Aqua Adapters, Ceramic Sleeve


UPC SM Adapter Plate

Part Number Description
UFE-B-06SC-C 6-Fiber (6-Simplex) SC SM Adapter Plate, Blue Adapters, Ceramic Sleeve
UFE-B-08SC-C 8-Fiber (8-Simplex) SC SM Adapter Plate, Blue Adapters, Ceramic Sleeve
UFE-B-12SC-C 12-Fiber (6-Duplex) SC SM Adapter Plate, Blue Adapters, Ceramic Sleeve


APC SM Adapter Plate

Part Number Description
UFE-B-06SCA-C 6-Fiber (6-Simplex) SC APC SM Adapter Plate, Green Adapters
UFE-B-08SCA-C 8-Fiber (8-Simplex) SC APC SM Adapter Plate, Green Adapters
UFE-B-12SCA-C 12-Fiber (6-Duplex) SC APC SM Adapter Plate, Green Adapters


Empty Adapter Plate

Part Number Description
UFE-B-06SC-B 6-Simplex SC/6-Duplex LC Adapter Plate, No Adapters
UFE-B-08SC-B 8-Simplex SC/8-Duplex LC Adapter Plate, No Adapters No Connectors
UFE-B-12SC-B 12-Duplex SC/12-Quadruplex LC Adapter Plate, No Adapters



LC Adapter Plates

OM1/OM2 Adapter Plate

Part Number Description
UFE-B-06LC 12-Fiber (6-Duplex) LC MM Adapter Plate, Beige Adapters, Phosphor Bronze Sleeve
UFE-B-08LC 16-Fiber (8-Duplex) LC MMAdapter Plate, Beige Adapters, Phosphor Bronze Sleeve
UFE-B-12LC 24-Fiber (6-Quad) LC MM Adapter Plate, Beige Adapters, Phosphor Bronze Sleeve


OM3/OM4 Adapter Plate

Part Number Description
