Category 6 Screened Cable

Category 6 Screened Cable

OVERVIEW

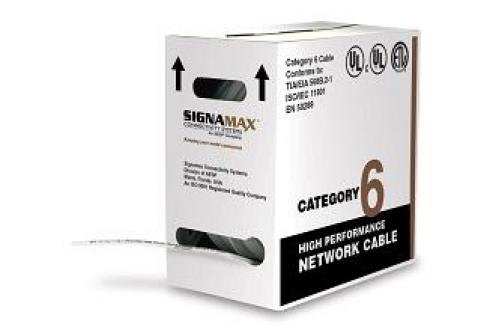

Category 6 4-pair screened solid conductor cable is ETL verified, manufactured to the highest quality standards, and exceeds all per-formance specifications for category 6 as defined in ANSI/TIA-568-C.2, ISO/IEC 11801 2nd Edition, CENELEC EN 50173-1, and CENELEC EN 50288. Cable is available in riser (UL CMR) version and supplied in "tangle-free" cartons of 305 m (1,000 ft). Cable is RoHS compliant per European Union Directive 2002/95/EC.

KEY FEATURES

  • Transmission performance exceeds standard category 6 requirements
  • 1,000-foot "tangle-free" cartons
  • Aluminum foil screen/tinned copper drain wire

SPECIFICATIONS

  • TRANSMISSION PERFORMANCE

ANSI/TIA/EIA-568-C.2: exceeds category 6 (1 - 250 MHz) component specifications
ISO/IEC 11801, CENELEC EN 50173: exceeds category 6 (1 - 250 MHz) component specifications
TYPICAL PERFORMANCE:
Impedance: 100 Ohm ± 15 % @ 1-100 MHz
Mutual capacitance: max 5.6 nf/100 m (328 ft)
Capacitance unbalance: max 330 pF
Nominal velocity of propagation: 60 %
Propagation delay skew: 45 ns/100 m (328 ft)





  • CONSTRUCTION

CONDUCTOR:
Material bare copper
Size 23 AWG
Construction 1/0.570 ± 0.02 mm (1/0.0224 ± 0.001 in)
INSULATION:
Material PE
Diameter 1.1 ± 0.02 mm (0.04 ± 0.001 in)
Color coding blue/white-blue
orange/white-orange
green/white-green
brown/white-brown
CENTRAL ELEMENT: PE, cross-shaped
SHEATH:
Material PVC
Thickness min 0.47 mm (0.019 in)
Diameter 7.8 ± 0.3 mm (0.31 ± 0.01 in)
Color Gray RAL 7035
SCREEN:
PET tape 0.023 mm (0.0009 in) thickness
Aluminum/PET tape 0.025 mm (0.0010 in) thickness
Tinned copper drain wire 0.46 mm (0.018 in) diameter

  • MECHANICAL

Tensile strength > 400 N (90 lbf)
Minimum bend radius 25 mm (1 in)

  • COMPLIANCE

ANSI/TIA/EIA-568-C.2, ISO/IEC 11801, CENELEC EN 50173-1, CENELEC EN 50288-5-1, IEC 61156-6, IEC 60332-1-2, UL 444, UL 1666

  • APPLICATIONS

X.21, V.11, S0, ISDN, CSMA/CD 10BASE-T, 100BASE-TX, 100BASE-T4, 100BASE-T2, 1000BASE-T, 10GBASE-T, TR 4/16/100, 100BASE-VG, ATM LAN 25/51/155, TP-PMD

  • WARRANTY

5-year limited component warranty
10-year Signamax Link/Channel Warranty
15-year Signamax Extended Component Warranty
25-year Signamax Cabling System Warranty



DOWNLOADS

Download DatasheetDownload Datasheet

ORDERING INFORMATION

Part Number Description
BC6-4SHGY Category 6, 4-Pair, 23-AWG Solid Screened F/UTP Cable, CMR (PVC), Gray, 1000 ft

Cable is available for customers outside the U.S. only. Minimum quantity may be required.
