Category 6A UTP Cable

Category 6A UTP Cable

OVERVIEW

Signamax solid conductor UTP cable is ETL verified to ANSI/TIA-568-C.2 for category 6A cable specifications, UL CMR rated, manufac-tured to the highest quality standards, and meets all applicable performance specifications of category 6A requirements as per ANSI/TIA and ISO/IEC standards. Flame retardancy is verified according to IEC and UL requirements. RoHS compliance per European Union Directive 2002/95/EC.

KEY FEATURES

  • Transmission performance meets standard category 6A requirements per
    - ANSI/TIA-568-B.2-10
    - ISO/IEC 2nd Edition Amendment 1.2
    - CENELEC EN 50288-10-1
    - ISO/IEC 61156-5 2nd Edition
  • ETL verified to TIA-568-B.2-10 for category 6A single cable w/o alien crosstalk
  • RoHS compliance per European Union Directive 2002/95/EC

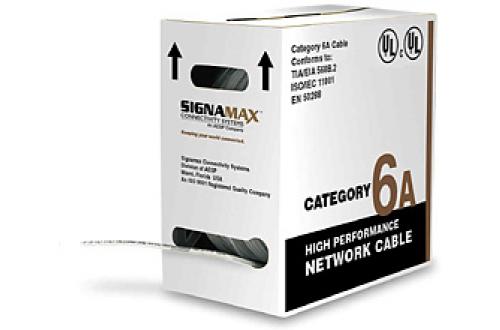

  • 1000-foot reels


SPECIFICATIONS

  • TRANSMISSION PERFORMANCE

ANSI/TIA-568-B.2-10: Category 6A (1-500 MHz) specifications
ISO/IEC 2nd Edition Amendment 1.2: Category 6A/Class EA (1-500 MHz) specifications
TYPICAL PERFORMANCE:
Impedance: 125 Ohm ± 20 % @ 64 kHz, 100 Ohm ± 15 % @ 1-500 MHz
Delay skew: max 45 ns / 100 m (328 ft) (1-500 MHz) @ 20 °C
Delay skew variation: max ±10 ns @ 40-60 °C



  • CONSTRUCTION

CONDUCTOR:
Material bare copper
Size 23 AWG
Construction 1/0.56 ± 0.02 mm (1/0.022 ± 0.001 in)
INSULATION:
Material HDPE
Thickness average: 0.22 mm (0.009 in),
min at any point: 0.12 mm (0.005 in)
Diameter 1.0 ± 0.1 mm (0.039 ± 0.004 in)
Color coding blue/white-blue
orange/white-orange
green/white-green
brown/white-brown
Elongation min 300%
Tensile strength min 1.682 kg/mm2 (0.0058 psi)
SHEATH:
Material PVC
Thickness average: 0.65 mm (0.026 in), min at any point: 0.6 mm (0.024 in)
Diameter 7.5 ± 0.3 mm (0.30 ± 0.01 in)
Color gray
Elongation min 100%
Tensile strength min 1.407 kg/ mm2 (0.005 psi)
Aging at 100°C for 168 hrs min elongation retention: 50%, min tensile strength retention: 75%

  • MECHANICAL

Tensile strength > 400 N (90 lbf)
Minimum bend radius 25 mm (1 in)

  • ELECTRICAL

Spark test 2,000 ± 250 Vac
Dielectric strength 2,500 Vdc / 3 seconds
Insulation resistance min 150 MOhm/km (46 MOhm/kft)
Conductor resistance max 9.38 Ohm / 100 m (328 ft) @ 20°C; typical 7.4 Ohm / 100 m (328 ft)
Resistance unbalance max 5.00 %; typical < 2 %
Capacitance unbalance max 330 pF / 100 m (328 ft); typical < 50 pF / 100 m (328 ft)
Mutual capacitance max 98 nF / 100 m (328 ft); typical < 5 nF / 100 m (328 ft)

  • COMPLIANCE

ANSI/TIA/EIA-568-B.2-10, ISO/IEC 11801, ISO/IEC 61156-5, CENELEC EN 50288-10-1, UL/cUL listed, EU Directive 2002/95/EC

  • APPLICATIONS

X.21, V.11, S0, ISDN, CSMA/CD 10BASE-T, 100BASE-TX, 100BASE-T4, 100BASE-T2, 1000BASE-T, 1000BASE-TX, 10GBASE-T, TR 4/16/100, 100BASE-VG, ATM LAN 25/51/155/622/CB1G, TP-PMD

  • WARRANTY

5-year limited component warranty
10-year Signamax Link/Channel Warranty
15-year Signamax Extended Component Warranty
25-year Signamax Cabling System Warranty

ORDERING INFORMATION

CMP Rated

Part Number Description
BC6A-4P-BU Category 6A, 4-Pair, 23-AWG Solid Unscreened U/UTP Cable, CMP, Blue, 1000 ft
BC6A-4P-GY Category 6A, 4-Pair, 23-AWG Solid Unscreened U/UTP Cable, CMP, Gray, 1000 ft
BC6A-4P-WH Category 6A, 4-Pair, 23-AWG Solid Unscreened U/UTP Cable, CMP, White, 1000 ft
BC6A-4P-YE Category 6A, 4-Pair, 23-AWG Solid Unscreened U/UTP Cable, CMP, Yellow, 1000 ft

Cable is available for customers outside the U.S. only. Minimum quantity may be required.

CMR Rated



Part Number Description
BC6A-4BU Category 6A, 4-Pair, 23-AWG Solid Unscreened U/UTP Cable, CMR (PVC), Blue, 1000 ft
BC6A-4GY Category 6A, 4-Pair, 23-AWG Solid Unscreened U/UTP Cable, CMR (PVC), Gray, 1000 ft
BC6A-4WH Category 6A, 4-Pair, 23-AWG Solid Unscreened U/UTP Cable, CMR (PVC), White, 1000 ft
BC6A-4YE Category 6A, 4-Pair, 23-AWG Solid Unscreened U/UTP Cable, CMR (PVC), Yellow, 1000 ft

Cable is available for customers outside the U.S. only. Minimum quantity may be required.


CM Rated



Part Number Description
BC6AM-4BU Category 6A, 4-Pair, 23-AWG Solid Unscreened U/UTP Cable, CM (PVC), Blue, 1000 ft
BC6AM-4GY Category 6A, 4-Pair, 23-AWG Solid Unscreened U/UTP Cable, CM (PVC), Gray, 1000 ft
BC6AM-4WH Category 6A, 4-Pair, 23-AWG Solid Unscreened U/UTP Cable, CM (PVC), White, 1000 ft
BC6AM-4YE Category 6A, 4-Pair, 23-AWG Solid Unscreened U/UTP Cable, CM (PVC), Yellow, 1000 ft

Cable is available for customers outside the U.S. only. Minimum quantity may be required.
