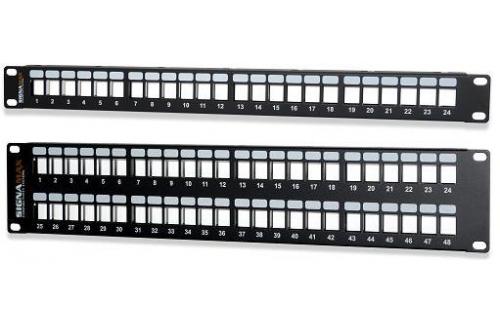

High-Density Field-Configurable Unloaded Multimedia Patch Panels

Overview
Key Features
Specifications
Downloads
Ordering Information

OVERVIEW

High-density field-configurable panels are available in 24- and 48-port sizes. Panels provide the flexibility when field configuring using a variety of connectors including category 6A, 6, 5e and voice-grade high-density jacks as well as a wide range of fiber and audio/video multimedia modules.

KEY FEATURES

24- and 48-port sizes.
Field configurable - a variety of connector modules can be installed in any combinations.
Can be used as a feed-thru interconnect when used with twisted-pair inline couplers.
Maximum strength and durability construction.
Accommodates both unscreened and screened twisted pair keystone jacks.
Snap-in rear cable management bar.

SPECIFICATIONS

CONSTRUCTION:

Panel: steel/Ni plated steel
Cable management bar: steel/plastic

DIMENSIONS:

19" rack mountable:
24U-HDMMP: H 1.75" (1 RMU)
48U-HDMMP: H 3.0" (2 RMS)

OPERATING TEMPERATURE:

-14°F - 140°F (-10°C - +60°C)

COMPLIANCE:

UL 94V-0

DOWNLOADS

Download Datasheet

Download Drawing for 24U-HDMMP

Download Drawing for 48U-HDMMP

ORDERING INFORMATION

Part Number	Description
24U-HDMMP	24-Port High-Density Field-Configurable Unloaded Multimedia Patch Panels , 1.75″ High
48U-HDMMP	48-Port High-Density Field-Configurable Unloaded Multimedia Patch Panels , 3.50″ High
