OVERVIEW

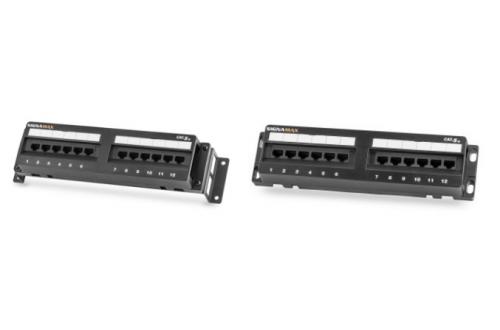

Wall-Mount Jack Panels are available in 6- and 12-port sizes with termination points enclosed in a protective housing featuring a removable front cover for easy access to the front-facing RJ-45 and 110 connectors. Optional design features standoff legs for routing cables behind the panel. The jack panels accommodate both T568A and T568B wiring schemes using an easy-to-read color-coded wiring label.

KEY FEATURES

Available in the following configurations and their combinations:
– 6- and 12-port designs;
– with and without stand-off legs.
Front access to both modular sockets and 110 connectors allows easy and quick termination and servicing
Protection cover is supplied with knock-outs on its long sides and two end openings allowing distribution cables to enter from any direction with straight access to 110 connectors.
Protection cover can be easily removed by hand or using an appropriate tool (e.g., a screwdriver)
Socket’s contact design provides enhanced plug-to-jack connection integrity and protects against damage caused by insertion of 4- or 6-position plugs Fully enclosed PCB design provides protection of printed circuitry during termination.
Connector/port labeling can be accomplished using the label holder covered with a removable clear plastic window; identifiers can be hand-written or printed on regular paper using general-purpose office printers.
Compatible with standard one-position and four-pair 110-type termination tools.
Compatible with 89D-type mounting brackets.

SPECIFICATIONS

TRANSMISSION PERFORMANCE

ANSI/TIA/EIA-568-C.2:
xx458JPL-C5E: meets or exceeds category 5e (1-100 MHz) connecting hardware specifications

TRANSMISSION MEDIA

Unscreened twisted pair (U/UTP)

JACK TYPE

8p8c (8-position, 8-contact) “RJ45″ style

WIRING SCHEME

ANSI/TIA-568-C.2: T568A & T568B
ISO/IEC 11801 2nd Ed.: 8-position pin/pair assignment (1-2/3-6/4-5/7-8)

WIRE GAUGE

22-24 AWG (0.643 – 0.511 mm)

ELECTRICAL

Insulation resistance: min 500 MOhm @ 100 Vdc
Dielectric withstanding voltage: 1,000 Vdc/ac peak contact-to-contact @ 60 Hz for 1 min
Spring wire contact resistance: max 20 mOhm
IDC contact resistance: max 2.5 mOhm
Current rating: see Specsheet

CONSTRUCTION

Panel housing: high-impact, flame-retardant UL 94V-0 thermoplastic
Connector housing: high-impact, flame-retardant UL 94V-0 thermoplastic
Jack spring wire: phosphor bronze alloy plated with 50 μin of gold over 70-100 μin of nickel
IDC: 110 type, phosphor bronze alloy with 100-μin 100% tin (Sn) alloy

MECHANICAL

Retention force, socket: 50 N (11 lbf) for 60 ± 5 s
Mating cycle life, socket: min 750 cycles

MOUNTING DIMENSIONS

6458JPL-xxx
W 177 mm ( 7.0 in) H 67 mm (2.7 in) D 38 mm (1.5 in)

6458JPL-xxx-L
W 210 mm ( 8.3 in) H 67 mm (2.7 in) D 70 mm (2.8 in)

12458JPL-xxx W
266 mm (10.5 in) H 67 mm (2.7 in) D 38 mm (1.5 in)

12458JPL-xxx-L
W 300 mm (11.8 in) H 67 mm (2.7 in) D 70 mm (2.8 in)

ENVIRONMENTAL CONDITIONS

Storage: -40 °C – +70 °C (-40 °F – +158 °F)
Operation: -10 °C – +60 °C (+14 °F – +140 °F)
RH (operation): max non-condensing 93 %

COMPLIANCE

ANSI/TIA-568-C.2, IEC 60603-7, FCC Part 68 Subpart F, UL 94V-0, RoHS

APPLICATIONS

xx458JPL-C5E:
X.21, V.11, S0, ISDN, CSMA/CD 10BASE-T, 100BASE-TX, 100BASE-T4, 100BASE-T2, 1000BASE-T,
10GBASE-T (up to 25 m (82 ft)), TR 4/16/100, 100BASE-VG, ATM LAN 25/51/155, TP-PMD

xx458JPL-C6C:
X.21, V.11, S0, ISDN, CSMA/CD 10BASE-T, 100BASE-TX, 100BASE-T4, 100BASE-T2, 1000BASE-T,
10GBASE-T (up to 55 m (180 ft)), TR 4/16/100, 100BASE-VG, ATM LAN 25/51/155, TP-PMD

WARRANTY

5-year limited component warranty
10-year Signamax Link/Channel Warranty
15-year Signamax Extended Component Warranty
25-year Signamax Cabling System Warranty

DOWNLOADS

Information will be available soon

ORDERING INFORMATION

Part Number	Description
6458JPL-C5E	6-Port Category 5e Jack Panel, Flush-Mount
6458JPL-C5E-L	6-Port Category 5e Jack Panel, Stand-off Legs
6458JPL-C5E-DR	6-Port Category 5e Jack Panel, DIN-Rail Mount
12458JPL-C5E	12-Port Category 5e Jack Panel, Flush-Mount
12458JPL-C5E-L	12-Port Category 5e Jack Panel, Stand-off Legs
12458JPL-C5E-DR	12-Port Category 5e Jack Panel, DIN-Rail Mount
