KEY FEATURES
- Standard NEMA 106 type faceplates and adapters
- High-impact thermoplastic, UL94V-0 fire-retardant
- W: 80 mm (3.13 in), H: 124 mm (4.88 in), screw spacing: 83 mm (3.28 in)

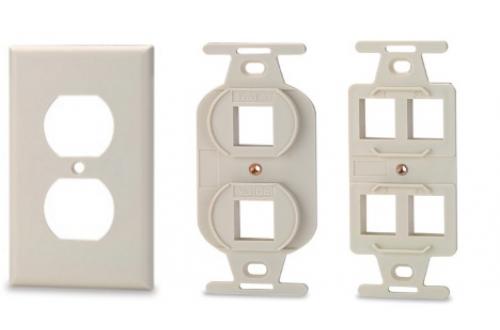

106-Type Faceplates and Keystone Adapters
OVERVIEW
The 106-Type Faceplates with 2- and 4-port adapters are compatible with all Signamax keystone jacks and multimedia modules. The 106-type plates and adapters are ideal to coordinate electrical wiring devices with telecommunications outlets.
SPECIFICATIONS
- CONSTRUCTION
High impact thermoplastic, UL94V-0 fire retardant
- OVERALL DIMENSIONS
W: 80.0 mm H: 124.0 mm
W: 3.13 in H: 4.88 in
- MOUNTING DIMENSIONS
Mounting screw holes distance: 83.3 mm (3.28 in)
- KEYSTONE MODULE MOUNTING DIMENSIONS
Standard keystone footprint
Panel opening: 14.7 mm (0.579 in) × 19.30 mm (0.760 in)
- OPERATING TEMPERATURE
-10 °C to +60 °C (-14 °F to +140 °F)
DOWNLOADS
Download DatasheetORDERING INFORMATION
| Part Number | Description | |
| SKF-106 | Single-Gang 106-Type Faceplate, Light Ivory | |
| SKF-106-WH | Single-Gang 106-Type Faceplate, White | |
| SKF-106-DI | Single-Gang 106-Type Faceplate, Dark Ivory |
| Part Number | Description | |
| 106A-2 | 2-Port 106-Type Faceplate Adapter, Light Ivory | |
| 106A-2-WH | 2-Port 106-Type Faceplate Adapter, White | |
| 106A-2-DI | 2-Port 106-Type Faceplate Adapter, Dark Ivory |
| Part Number | Description | |
| 106A-4 | 4-Port 106-Type Faceplate Adapter, Light Ivory | |
| 106A-4-WH | 4-Port 106-Type Faceplate Adapter, White | |
| 106A-4-DI | 4-Port 106-Type Faceplate Adapter, Dark Ivory |
|
