Gigabit Ethernet Copper SFP Modules – 100 m

Overview
Key Features
Specifications
Downloads
Ordering Information

OVERVIEW

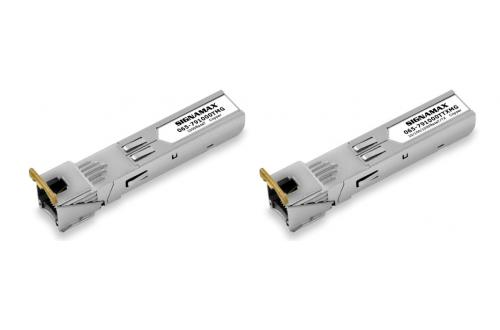

The Signamax model 065-791000TMG is a Small Form-factor Pluggable (SFP) 1000BaseT module that supports Gigabit Ethernet only over Category 5e or better twisted-pair cable at distances up to 100 meters. The Signamax 065-791000TTXMG is a Small Form-factor Pluggable (SFP) 10/100/1000BaseT/TX module that supports Standard, Fast, and/or Gigabit Ethernet over Category 5e or better twisted-pair cable at distances up to 100 meters**. They adhere to the IEEE 802.3z standard for Gigabit Ethernet, and are cost-effective methods of providing changeable 1000BaseT or 10/100/1000BaseT/TX Ethernet twisted-pair interfaces to switches and media converters equipped with a standard Gigabit-capable SFP port.

KEY FEATURES

RoHS compliant
Meets the SFP Multi-Source Agreement (MSA)
Up to 100 m link distance
Hot pluggable
Metal enclosure for low EMI performance
Low power dissipation

Application

Gigabit Ethernet Media Converters
Gigabit Ethernet LAN switch applications
Switch to switch SerDes interface
Switch to switch SGMII interface

SPECIFICATIONS

Part Number	Minimum Data Rate	Maximum Data Rate	Typical Bit Error Rate	Supply Voltage	Operating Temp.
065-791000TMG	100 Mbps	1000 Mbps	10^-10	3.3 V	0 ~ 70° C
065-791000TTXMG	10 Mbps**	1000 Mbps	10^-10	3.3 V	0 ~ 70° C

**Note: 10/100/1000BaseT/TX operation requires an SGMII interface with no clocks in the host system. With a SERDES interface that does not support SGMII, the module will operate at 1000BaseT only.

DOWNLOADS

Datasheet

ORDERING INFORMATION

Part Number	Description
065-791000TMG	Twisted-pair 1000BaseT SFP Module – RJ-45 (Cat. 5e or better cable), 100 m
065-791000TTXMG	Twisted-pair 10/100/1000BaseT/TX SFP Module – RJ-45 (Cat. 5e or better cable), 100 m
