Fast Ethernet Copper SFP Module

Fast Ethernet Copper SFP Module

OVERVIEW

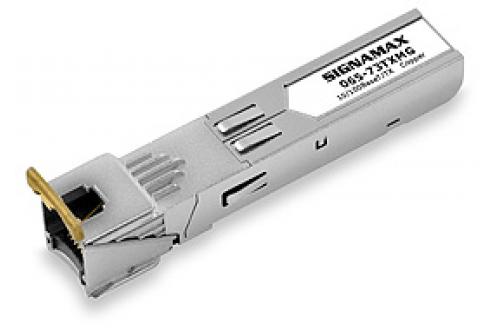

The Signamax 065-73TXMG is a Small Form-factor Pluggable (SFP) 10/100BaseT/TX module that supports Standard and/or Fast Ethernet over Category 5 or better twisted-pair cable at distances up to 100 meters. It adheres to the IEEE 802.3u standard for Fast Ethernet, and is a cost-effective method of providing changeable 10/100BaseT/TX Ethernet twisted-pair interfaces to switches and media converters equipped with a standard SFP port.



KEY FEATURES

  • RoHS compliant
  • Meets the SFP Multi-Source Agreement (MSA)
  • Up to 100 m link distance
  • Hot pluggable
  • Metal enclosure for low EMI performance
  • Low power dissipation

Application

  • Media Converters
  • 100BaseT/TX LAN switch applications

SPECIFICATIONS

Part Number

Minimum
Data Rate

Maximum
Data Rate

Typical Bit
Error Rate

Supply
Voltage

Operating
Temp.

065-73TXMG

10 Mbps

100 Mbps

10-10

3.3 V

0 ~ 70° C









DOWNLOADS

DatasheetDatasheet

ORDERING INFORMATION

Part Number

Description

065-73TXMG

10/100BaseT/TX SFP Module – RJ-45, 100 meters
