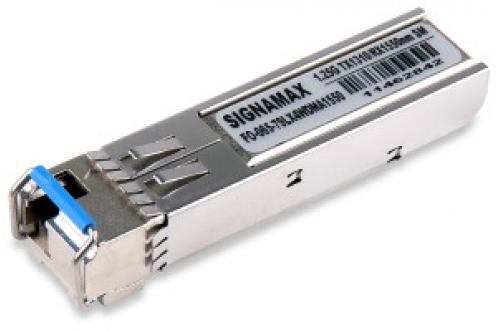

The Signamax 065-79LX4WDMx1550 series models are Small Form-factor Pluggable (SFP) multimode fiber modules that support Gigabit Ethernet or SONET OC-12 over a single strand of singlemode fiber cable at distances up to 40 kilometers. There are two types of models in this series: one transmits at 1310 nm and receives at 1550 nm (model 065-79LXnWDMA1550), and the other transmits at 1550 nm and receives at 1310 nm (model 065-79LXnWDMB1550). These modules are designed to be used in pairs facing each other across a single stand of singlemode fiber. They are a cost-effective method of providing changeable Gigabit Ethernet or SONET OC-12 single-fiber singlemode interfaces to switches and media converters equipped with a standard SFP port.
Application
|
Part Number |
TX/RX |
Light |
Link |
Typical Max. Distance** |
Supply |
Operating |
|
065-79LX4WDMA1550 |
Tx: 1310 nm |
DFP Laser |
20 dBm |
40 km |
3.3 V |
0 ~ 70° C |
|
065-79LX4WDMB1550 |
Tx: 1550 nm |
DFB Laser |
20 dBm |
40 km |
3.3 V |
0 ~ 70° C |
** Maximum distances attainable on singlemode fiber circuits are dependent upon a circuit’s conditions; i.e., the number of splices and patch panels and the number of bends in the circuit path. For comparison with competing products, please use the Link Power Budget for meaningful comparisons.
|
Part Number |
Description |
|
065-79LX4WDMA1550 |
WDM 1.25 Gbps SFP Module Tx: 1310 nm / Rx: 1550 nm – SM/LC Simplex, 40 km |
|
065-79LX4WDMB1550 |
WDM 1.25 Gbps SFP Module Tx: 1550 nm / Rx: 1310 nm – SM/LC Simplex, 40 km |
