OVERVIEW

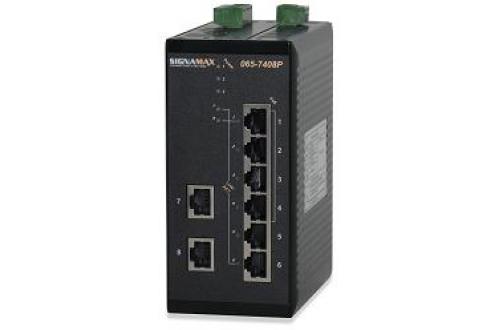

Signamax Connectivity Systems' 065-74xxP series 8-Port 10/100 Unmanaged Hardened Industrial Power over Ethernet (PoE) DIN-rail Mount Switches have been developed to operate and provide reliable power to up to 4 PoE Powered Devices (PDs) in harsh industrial and municipal environments that require ruggedized equipment capable of operating in severe temperature extremes.
These switches are an affordable PoE Power Source Equipment (PSE) solution for outdoor environments, transportation roadside systems, shop floors, and other harsh environments where consistent operation at temperature extremes of -40°F to 167°F (-40°C to 75°C) is necessary. To ensure high reliability, these switches are tested for functional operation to -40°F to 185°F (-40°C to 85°C). These unmanaged switches are compact, plug-and-play devices that do not require complex user setup.
SPECIFICATIONS
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX / 100BaseFX
IEEE 802.3x Flow Control and Back pressure
IEEE 802.3af Power over Ethernet, as Power Source Equipment
All Models: 8 twisted-pair ports meeting IEEE 802.3 10BaseT & IEEE 802.3u 100BaseTX standard specifications; Category 5 or better cable, 100 meters maximum distance for 100BaseTX, Category 3 or better cable, 100 meters maximum distance for 10BaseT. Auto MDI/MDI-X and Auto-Negotiation Function supported. Ports 1- 4 support IEEE 802.3af Power over Ethernet (PoE) as Power Source Equipment (PSE).

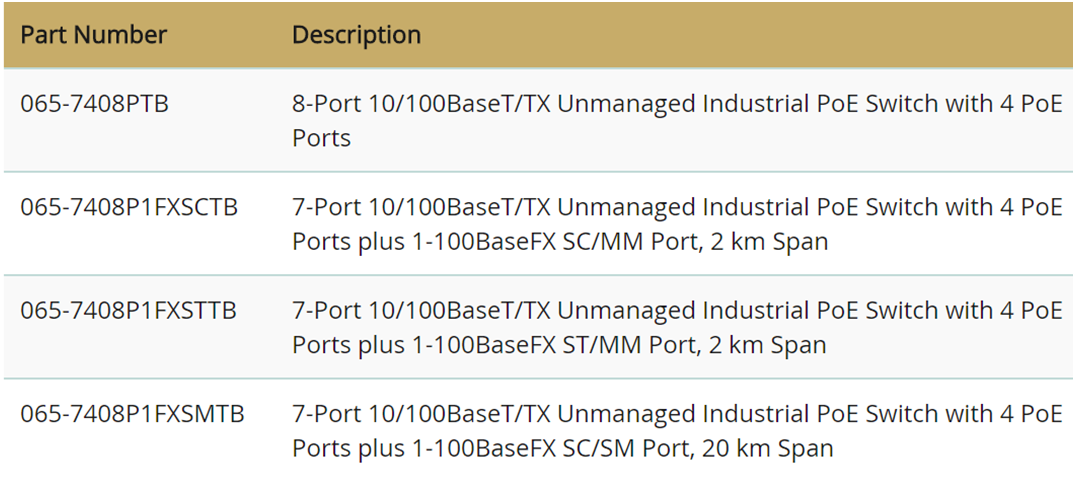

Models 065-7408P1FXSCTB and 065-7408P1FXSTTB: 1 100BaseFX port, 2 km Span, with SC Multimode (model 065-74091FXSCTB) or ST Multimode (model 065-74091FXSTTB) connectors.
Model 065-7408P1FXSMTB: 1 100BaseFX port, 20 km Span, with SC Singlemode connectors. Extended distance model spanning 40 km available by special order.
Global: Power1 (Green), Power2 (Green), Power3 (Green)
10/100BaseT/TX Ports and 100BaseFX Port: Link/Activity (Green)
Store and Forward
Buffer Memory: 1 Mbits
1,024 MAC Addresses
Forwarding Rate: 14,880 pps for 10 Mbps, 148,800 pps for 100 Mbps
Latency: less than 7.1 μs
Safety: UL1604: Classified for ITE Equipment for use in hazardous locations:
Class 1, Division 2 group A, B, C, & D: Temp Code T4A; -25C < Tamb < 74C
UL 60950, EN 60950-1, IEC 60950-1; IEC 61000-6-2
EMI: FCC Part 15 Class A; EN61000-6-2; EN61000-6-3
EMS:
ESD Standards (IEC 61000-4-2):
Enclosure Contact: + / - 4KV; Criteria B;
Enclosure Air: + / - 8KV; Criteria B
Radiated FRI Standards (IEC 61000-4-3):
Enclosure Ports: 10V/m, 80 to 1000 MHz, 80% AM; Criteria A
Burst Standards (IEC 61000-4-4):
Enclosure Ports: + / - 4KV @ 2.5 KHz; Criteria B
D.C. Power Ports: + / - 4KV; Criteria B
A.C. Power Ports: + / - 4KV; Criteria B
Surge Standards (IEC 61000-4-5):
Signal Ports: + / - 1KV; Line-to-line; Criteria B
D.C. Power Ports: + / - 0.5KV; Line-to-earth; Criteria B
A.C. Power Ports: + / - 2KV; Line-to-earth; Criteria B
Induced RFI Standards (IEC 61000-4-6):
Signal Ports: 10V RMS @ 0.15-80 MHz, 80% AM; Criteria A
D.C. Power Ports: 10V RMS @ 0.15-80 MHz, 80% AM; Criteria A
A.C. Power Ports: 10V RMS @ 0.15-80 MHz, 80% AM; Criteria A
Earth Ground Ports: 10V RMS @ 0.15 - 80 MHz, 80% AM; Criteria A
Magnetic Field Standards (IEC 61000-4-8):
30A/m @ 50, 60 Hz; Criteria A
Voltage Dip Standards (IEC 61000-4-11):
A.C. Power Ports: 30% Reduction for 0.5 period; Criteria B
Environmental Test Compliance:
Vibration Resistance (IEC 60068-2-6fc):
5G @ 150 Hz (Operation/Storage/Transport); Criterion 3
Shock (IEC 60068-2-27):
25G @ 11ms (Half-Sine Shock Pulse; Operation);
50G @ 11ms (Half-Sine Shock Pulse; Storage/Transport)
Free Fall (IEC 60068-2-32 Ed): 1 Meter (3.281 ft.)
NEMA TS1/2 Environmental Requirements for Traffic Control Equipment
Dimensions: 2.68 in.W x 5.35 in. Hx 4.33 in.D (68 mm x 136 mm x 110 mm)
Housing: IP20 protection, metal case
Weight: 2.2 lb (1 kg.)
Included DIN-rail mount. Optional wall mounting bracket available by special order.
- ELECTRICAL CHARACTERISTICS:
Maximum Power Consumption: 72 Watts
Maximum Current Drawn: 48 V DC @ 1.5 A
DC Input: 48 V DC, connected via redundant terminal block rated at 2.5 A.
Optional hardened 48 V DC power supply sold separately.
- ENVIRONMENTAL CHARACTERISTICS
Operating Temperature: -40°F to 167°F (-40°C to 75°C); tested to -40°F to 185°F (-40°C to 85°C)
Storage Temperature: -50°F to 200°F (-45°C to 93°C)
Operating Humidity: 5 to 95% (non-condensing)
5 years
