10/100 Managed Industrial PoE+ Switches

10/100 Managed Industrial PoE+ Switches

OVERVIEW

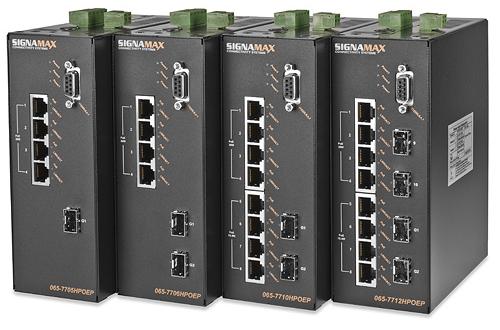

Signamax Connectivity Systems' 065-77xxHPOEP series Managed Hardened PoE+ Industrial DIN-rail Mount Switches are designed to operate in rugged environments with extreme temperature conditions. They are equipped with a variety of 10/100BaseT/TX RJ45 port configurations, with four ports supporting the new IEEE 802.3at PoE+ (30 watt) standard (plus four 802.3af 15.4 watt PoE ports in models 065-7710HPOEP and 065-7712HPOEP), and either one or two 1000Base SFP ports (plus two 100Base SFP ports in the 065-7712HPOEP model) in a compact package with built-in DIN-rail mounting. Model 065-7710H6POEP offers eight 10/100BaseT/TX ports, six of which support PoE+, plus two 1000BaseSFP ports.

The 065-77xxHPOEP series Managed Hardened PoE+ Industrial DIN-rail Mount Switches function at temperatures ranging from -40° F to 167° F (-40°C to 75° C), and is tested for functional operation at even greater extremes: -40° F to 185° F (-40° C to 85° C). The 065-77xxHPOEP series are fully managed switches, with system administrator control via SNMP v.3, Web Browser, Telnet or a Local Console port mounted on the front panel for easy access. PoE+ support allows the 065-77xxHPOEP series to handle Pan/Tilt/Zoom (PTZ) IP security camera requirements; Recover-RingTM capability allows redundant ring network recovery in <20 ms, making these ideal switches for perimeter security requirements.

These vehicles also support advanced features such as 802.1Q VLAN, MAC-based Trunking, IP-Multicast IGMP Snooping, Rapid Spanning Tree for Redundancy, QoS for priority queuing, and port mirroring for easy implementation of resilient, highcapacity networks supporting critical Security and Public Safety applications over Gigabit Ethernet copper and fiber backbones. Individual administrators or Network Operations Centers (NOCs) may also choose to perform remote monitoring and configuration using the Web browser or Telnet interfaces, or from overlay management systems such as HP OpenView or IBM/Tivoli NetViewTM via SNMP and RMON. The 065-77xxHPOEP series also supports rate control for individual port maximum bandwidth settings, for high-granularity network control. The Signamax 065-77xxHPOEP series Managed Hardened PoE+ Industrial DIN-rail Mount Switches offer powerful control and administrative features in a rugged, compact, and cost-effective package capable of supporting PTZ IP camera requirements for sophisticated perimeter security applications.

KEY FEATURES

  • Supports PoE+ (30 watt) Power Source Equipment (PSE).
  • PoE control and scheduling.
  • Fanless operation.
  • Supports Recover-RingTM and RSTP/MSTP/STP for Ethernet redundancy.
  • IP Multicast Filtering through IGMP Snooping V1, V2 & V3.
  • Supports port-based VLAN and IEEE 802.1Q VLAN Tagging and GVRP.
  • IEEE 802.1p QoS with four priority queues.
  • MAC-based trunking with automatic link fail-over.
  • RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management.
  • Supports Command Line Interface in RS-232 Console.
  • Supports IEEE 802.1x Security.
  • Bandwidth Rate Control.
  • Per-port programmable MAC address locking.
  • Up to 24 Static Secure MAC addresses per port.
  • Port mirroring, both Inbound and Outbound.
  • Supports Network Time Protocol (NTP).
  • 1000 Mbps: Full-duplex; 10/100 Mbps: Full/Half-duplex; Auto-Negotiation, Auto-MDI/MDIX.
  • Full wire-speed forwarding rate.
  • -40°F to 167°F (-40°C to 75°C) operating temperature range; tested for functional operation @ -40°F to 185°F (-40°C to 85°C).

SPECIFICATIONS

  • APPLICABLE STANDARDS

IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3ab 1000BaseT
IEEE 802.3z 1000BaseSX/LX
IEEE 802.3af Power over Ethernet (PoE, 15.4 watt)
IEEE 802.3at Power over Ethernet (PoE+, 30 watt)
IEEE 802.1p Priority (Quality of Service [QoS])
IEEE802.1s Multiple Spanning Tree Protocol
IEEE802.1w Rapid Spanning Tree Protocol
IEEE802.1D Spanning Tree Protocol compatible
IEEE 802.1Q Tagged VLAN with GVRP
IEEE 802.3x Flow Control
IEEE 802.1x Access Control

  • PORTS

Model 065-7705HPOEP:
4 - RJ-45 10/100BaseT/TX ports; 4 ports supporting IEEE 802.3at Power over Ethernet (PoE+) at full 30 watts power per port, plus 1 -1000Base SFP port with 1000Base SFP receptacle.

Model 065-7706HPOEP:
4 - RJ-45 10/100BaseT/TX ports; 4 ports supporting IEEE 802.3at Power over Ethernet (PoE+) at full 30 watts power per port plus 2 -1000Base SFP ports with 1000Base SFP receptacles.

Model 065-7710HPOEP:
8 - RJ-45 10/100BaseT/TX ports; 8 ports supporting IEEE 802.3at Power over Ethernet (PoE+) at full 30 watts power per port, plus 2 -1000Base SFP ports with 1000Base SFP receptacles.
Model 065-7710H6POEP:
8 - RJ-45 10/100BaseT/TX ports; 8 ports supporting IEEE 802.3at Power over Ethernet (PoE+) at full 30 watts power per port, plus 2 -1000Base SFP ports with 1000Base SFP receptacles.

Model 065-7712HPOEP:
8 - RJ-45 10/100BaseT/TX ports; 4 ports supporting IEEE 802.3at Power over Ethernet (PoE+) at full 30 watts power per port plus 2 -100Base SFP ports with 100Base SFP receptacles plus 2 -1000Base SFP ports with 1000Base SFP receptacles.

Broadcast/Multicast Storm Suppression enabled.

  • LED STATUS INDICATORS

Per Switch: Power Status 1

Per Port:
PoE+ for 10/100TX: (Amber)
Link/Activity, 10/100 Speed: (Green),
Link/Activity, Gigabit Speed: (Green)
SFP Activity: (Green)

  • PERFORMANCE

Latency: <4.5 μs (LIFO).
Throughput, per port: 1.48810 million pps (64-byte packets)
Switch Fabric Speed: 8.0 Gbps (non-blocking, wire speed performance)

MAC Address Capacity:
8 K MAC addresses
Per-port programmable MAC address locking
Up to 24 Static Secure MAC addresses per port

Frame Buffer: 2 MB
Port Mirroring: Inbound and Outbound

  • INTERNETWORKING PROTOCOLS SUPPORTED

Recover-RingTM: Supports recovery of ring-based network architecture in <20ms. Proprietary.
MAC-based Trunking: 2 Fast Ethernet +1 Gigabit Ethernet trunking groups; up to 4 ports for each group
GVRP/GARP (GARP VLAN Registration Protocol / Generic Attribute Registration Protocol): IEEE 802.1Q with GVRP/ GARP
Multicasting: Supports IP Multicast Filtering via IGMP Snooping V1, V2 & V3
STP/RSTP/MSTP (Spanning Tree Protocol / Rapid Spanning Tree /Multiple Spanning Tree Protocol): IEEE 802.1d/1w/1s

  • VLAN CAPABILITIES

Port-based VLAN
IEEE 802.1Q Tag-based VLAN; up to 4K active VLANs possible

  • QoS CAPABILITIES

Supports 802.1p QoS with four level priority queue
Supports two scheduling types, Strict Priority and Weighted Round Robin (WRR) with user-variable weighting.
Supports bandwidth rating per port

  • BANDWIDTH CONTROL CAPABILITIES

Bandwidth Rate Limiting:
Ingress rate limits: 64 Kbps up to 100 Mbps for 10/100 ports, up to 1 Gbps for 1000Base ports
Egress rate limits: 64 Kbps up to 100 Mbps for 10/100 ports, up to 1 Gbps for 1000Base ports

Broadcast Storm Suppression: Multicast/Broadcast/Unknown-Unicast Storm suppression

  • MANAGEMENT

Access Methods: Console port access via RS-232C DB-9 local console serial port, Telnet remote access, SNMP agent, and Web browser.
Software Upgrade Capability: Via TFTP

SNMP v1, v2, and v3 Network Management:
RFC 1213 MIB (MIB-2)
RFC 1757 RMON MIB
Statistics Group 1
History Group 2
Alarm Group 3
Event Group 9
RFC 1493 Bridge MIB
VLAN MIB (IEEE802.1Q/RFC2674)
Private MIB

  • CERTIFICATIONS

Safety: UL508, EN60950-1, IEC60950-1; CE Mark

EMI: FCC Part 15 Class A; EN61000-6-3; EN55022; EN61000-3-2; EN61000-3-3

EMS:
ESD Standards (IEC 61000-4-2):
Enclosure Contact: + / - 4KV; Criteria B;
Enclosure Air: + / - 8KV; Criteria B

Radiated FRI Standards (IEC 61000-4-3):
Enclosure Ports: 10V/m, 80 to 1000MHz, 80% AM; Criteria A

Burst Standards (IEC 61000-4-4):
Enclosure Ports: + / - 4KV @ 2.5 KHz; Criteria B
D.C. Power Ports: + / - 4KV; Criteria B
A.C. Power Ports: + / - 4KV; Criteria B

Surge Standards (IEC 61000-4-5):
Signal Ports: + / - 1KV; Line-to-line; Criteria B
D.C. Power Ports: + / - 0.5KV; Line-to-earth; Criteria B
A.C. Power Ports: + / - 2KV; Line-to-earth; Criteria B

Induced RFI Standards (IEC 61000-4-6):
Signal Ports: 10V RMS @ 0.15-80MHz, 80% AM; Criteria A
D.C. Power Ports: 10V RMS @ 0.15-80MHz, 80% AM; Criteria A
A.C. Power Ports: 10V RMS @ 0.15-80MHz, 80% AM; Criteria A
Earth Ground Ports: 10V RMS @ 0.15 - 80MHz, 80% AM; Criteria A

Magnetic Field Standards (IEC 61000-4-8):
30A/m @ 50, 60Hz; Criteria A

Voltage Dip Standards (IEC 61000-4-11):
A.C. Power Ports: 30% Reduction for 0.5 period; Criteria B

Environmental Test Compliance:
Vibration Resistance (IEC 60068-2-6fc): 5G @ 150Hz (Operation/Storage/Transport); Criterion 3
Shock (IEC 60068-2-27): 25G @ 11ms (Half-Sine Shock Pulse; Operation); 50G @ 11ms (Half-Sine Shock Pulse; Storage/Transport)
Free Fall (IEC 60068-2-32 Ed): 1 Meter (3.281 ft.)

  • PHYSICAL CHARACTERISTICS

Dimensions (all models): 2.56" (W) x 5.71" (D) x 6.5" (H) (65mm x 145mm x 165mm)
Housing: IP30 protection, metal case. Pre-attached DIN-rail mounting hardware included.
Weight: 2.2 lbs (1.0 kg)

  • ENVIRONMENTAL CHARACTERISTICS

Operating Temperature: -40°F to 167°F (-40°C to 75° C); Tested to -40°F to 185°F (-40°C to 85° C).
Storage Temperature: -40°F to 185°F (-40°C to 85° C),
Operating Humidity: 5 to 95% RH, non-condensing.

  • ELECTRICAL CHARACTERISTICS

Maximum Switch Power Consumption w/o PoE connections: 15 Watts.

Maximum IEEE 802.3at PoE+ Power Consumption:
Models 065-7705HPOEP and 065-7706HPOEP:
Full load with 4 ports PoE+ (30W for each PoE port): 120 Watts.

Models 065-7710HPOEP and 065-7712HPOEP:
Full recommended load -- 4 ports IEEE 802.3at PoE+ (30W for each PoE port) plus 4 ports IEEE 802.3af PoE (15.4W for each PoE port): 181.6 Watts.

Model 065-7710H6POEP:
Full recommended load -- 6 ports IEEE 802.3at PoE+ (30W for each PoE port): 180 Watts.

Maximum Total Power Consumption:
Models 065-7705HPOEP and 065-7706HPOEP (Switch plus 4 PoE+ ports at full load): 135 Watts.

Model 065-7710HPOEP and 065-7712HPOEP (Switch plus full recommended load -- 4 ports IEEE 802.3atPoE+ (30W for each PoE port) plus 4 ports IEEE 802.3af PoE (15.4W for each PoE port): 196.6 Watts.

Model 065-7710H6POEP (Switch plus 6 PoE+ ports at full load): 195 Watts.

Maximum Current Drawn:
Models 065-7705HPOEP and 065-7706HPOEP (Switch plus 4 PoE+ ports at full load): 2.8125 A @ 48 VDC.
Model 065-7710HPOEP and 065-7712HPOEP (Switch plus full recommended load -- 4 ports IEEE 802.3atPoE+ (30W for each PoE+ port) plus 4 ports IEEE 802.3af PoE (15.4W for each PoE port): 4.096 A @ 48 VDC.

Model 065-7710H6POEP (Switch plus 6 PoE+ ports at full load): 4.0625 A @ 48 VDC.

DC Input Range: 48 V DC, connected via redundant terminal block.

  • WARRANTY

Five years.

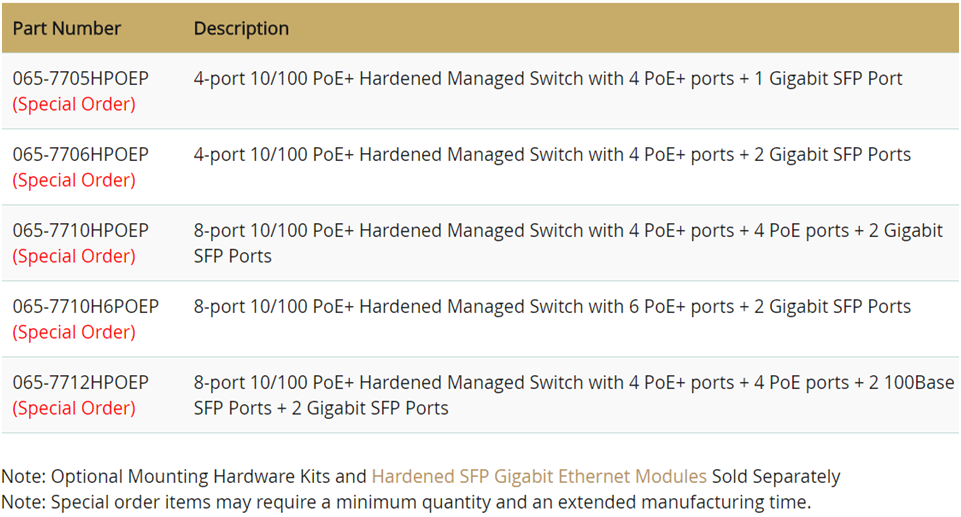

ORDERING INFORMATION
