OVERVIEW

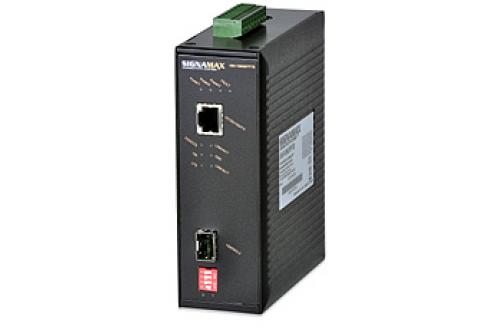

Signamax Connectivity Systems' 065-1896SFPTB 10/100/1000BaseT/TX to 1000BaseSFP media converter has been developed to operate flexibly at Standard Ethernet, Fast Ethernet, or Gigabit Ethernet speeds in harsh industrial environments that require ruggedized equipment that can operate in severe temperature extremes. This media converter is an affordable solution for outdoor environments, transportation roadside systems, shop floors, and other harsh environments where consistent operation at temperature extremes of -40°F to 176°F (-40°C to 80°C) is necessary and varying Ethernet speeds interface to a fiber optic Gigabit Ethernet network. The SFP receptacle meets the SFP Multi-Source Agreement, and will operate with a variety of SFP module models that can transmit over either multimode or singlemode fiber. This media converter is a compact, plug-and-play device that does not require complex user setup, but also has the manual setting features necessary to adjust to unusual operating conditions.
SPECIFICATIONS
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3ab 1000BaseT
IEEE 802.3z 1000BaseSX / 1000BaseLX
SFP Multi-Source Agreement (MSA)
1 twisted-pair port meeting IEEE 802.3 10BaseT,
IEEE 802.3u, or IEEE 802.3ab 1000BaseT standard specifications,
Auto MDI/MDI-X and Auto-Negotiation Function supported.
PLUS
1 1000BaseSFP port with SFP receptacle meeting SFP
Multi-Source Agreement (MSA), supporting IEEE 802.3z
1000BaseSX/LX standard specifications.
- TWISTED-PAIR CABLE REQUIREMENTS
Category 5e or better cable, 100 meters maximum
distance for 1000BaseT; Category 5 or better cable, 100
meters maximum distance for 100BaseTX; Category 3 or
better cable, 100 meters maximum distance for 10BaseT.
Per Unit: Power1, Power2, Power3 (Green). Fault, LFS
Per Port: 10/100/1000BaseT/TX port: Link/Activity,
Speed, Full Duplex/Collision
1000BaseSX/LX port - Link F, TX, RX
Throughput @ 1000BaseT: 1,488,100 pps
Throughput @ 100BaseTX: 148,810 pps
Throughput @ 10BaseT: 14,881 pps
(64-byte packets)
NEMA TS1/2 Environmental requirements for traffic control equipment
ISO: Manufactured in an ISO9001 facility
Environmental Test Compliance:
Vibration Resistance (IEC 60068-2-6): 5G@150Hz;
Criterion 3
Operation/Storage/Transport Shock (IEC 60068-2-27):
25G @ 11ms (Half-Sine Shock Pulse; Operation)
50G @ 11ms (Half-Sine Shock Pulse: Storage/Transport)
Free Fall (IEC 60068-2-32): Free Fall: 1M (3.281 ft.)
ESD Standards (IEC 61000-4-2):
Enclosure Contact: +/- 4kV; Criteria B
Enclosure Air: +/- 8kV; Criteria B
Radiated FRI Standards (IEC 61000-4-3):
Enclosure Ports: +/- 4kV@2.5kHz This e-mail address is being protected from spambots. You need JavaScript enabled to view it ; Criteria B
Burst Standards (IEC 61000-4-4):
Enclosure Ports: 10V/m, 80 to 1000MHz; Criteria A
D.C. Power Ports: +/- 4kV; Criteria B
A.C. Power Ports: +/- 4kV; Criteria B
Surge Standards (IEC 61000-4-5):
Signal Ports: +/- 1kV Line-to-earth; Criteria B
D.C. Power Ports: +/- 0.5kV Line-to-earth; Criteria B
A.C. Power Ports: +/- 2kV; Line-to-earth; Criteria B
Induced RFI Standards (IEC 61000-4-6):
Signal Ports: 10v@ 0.15 - 80 MHz; Criteria A
DC Power Ports: 10v@ 0.15 - 80 MHz; Criteria A
AC Power Ports: 10v@ 0.15 - 80 MHz; Criteria A
Earth Ground Ports: 10v@ 0.15 - 80 MHz; Criteria A
Magnetic Field Standards (IEC 61000-4-8):
Enclosure Ports: 30A/m@ 50, 60Hz; Criteria A
Voltage Dip Standards (IEC 61000-4-11):
AC Power Ports: 30% Reduction for 0.5 period; Criteria B
Operating Temperature: -40°F to 176°F (-40°C to 80°C)
Storage Temperature: -50°F to 200°F (-45°C to 93°C)
Operating Humidity: 10 to 95% (non-condensing)
DIN Rail Kit included and pre-installed.
FCC: Part 15 Class A
CE: EN55022 (CISR22 Class A),
EN55024 (CISPR24 Class A), CE EN-6100-4-4,
CE EN6100-4-5, CE EN6100-4-6
UL 508
Lifetime
