12-Channel Rack Mount Media Converters

12-Channel Rack Mount Media Converters

OVERVIEW

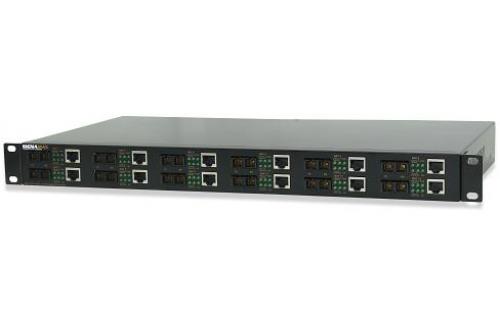

The Signamax 065-1200 series 12-Channel Rack Mount 100BaseFX Media Converter is a perfect solution for large installations that utilize many of the same type of media converters. The 065-1200 series contains 12 channels of media conversion in a standard rack mountable case only one rack unit high. This extremely high port density allows the maximum number of media converter channels per rack for enterprise-level businesses and carriers. Redundant fan-cooled power supplies ensure system uptime.

The 065-1200 series has a choice of configurations, utilizing the same technology and connector types as the standalone media con-verters in the 065-1100 series for 10/100BaseT/TX to 100BaseFX conversion. Link Fault Signaling (LFS) is standard on all switching converter versions.

KEY FEATURES

  • 12 Media Converter Channels In 1U of Rack Space
  • Media Conversion Between 10/100T and 100FX
  • Auto-Negotiation of 10Mbps and 100Mbps Speed and Duplex Mode on TX Port
  • Front Panel Status LEDs
  • Link Fault Signaling on All Switching Converters
  • Store-and Forward Switching for 10BaseT to 100BaseTX Conversion
  • Rack-Pressure & IEEE802.3x Compliant Flow Control
  • All TX Ports Support Auto-MDIX
  • Lifetime Performance Warranty

SPECIFICATIONS

  • APPLICABLE STANDARDS

IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3u 100BaseFX

  • FIXED PORTS

Twelve channels of media conversion, each with a twisted pair port and a corresponding fiber optic port meeting either of the following specifications:

SWITCHED FAST ETHERNET SERIES:
Multimode versions:
10/100BaseT/TX to 100BaseFX, multimode fiber; choice of SC, ST, VF-45 or MT-RJ connectors; maximum distance: 2,000 meters
Singlemode versions:
10/100BaseT/TX to 100BaseFX, singlemode fiber, SC connectors; MT-RJ connectors available by special order. Maximum distance: up to 75 kilometers
LED Status Indicators:
Per unit: Power status, Speed (2 LEDs)
Per port: LNK/ACT, FDX/COL (2 LEDs)

  • PERFORMANCE

SWITCHED FAST ETHERNET SERIES:
Latency: < 4.2 µs (LIFO)
Throughput @ 100Base: 148,809 pps (64-byte packets)
Speed:
100BaseTX: 100/200 Mbps for half/full duplex
10BaseT: 10/20 Mbps for half/full duplex
Switching Method: Store-and-Forward
Maximum MAC Addresses: 1,024 entries
Memory: 256 KB

  • FIBER INTERFACES

100BaseFX, ALL MULTIMODE PART NUMBERS:
Type: LED
Wavelength: 1300 nm nominal (1270 nm maximum, 1380 nm minimum)
Maximum Output Power: - 14.0 dBm
Minimum Output Power: - 20.0 dBm
Sensitivity: -33.0 dBm
Maximum Input Power: - 8.0 dBm
Link Power Budget: 13.0 dB

100BaseFX, SINGLEMODE PN 065-1200SC20:
Type: MQW Laser
Wavelength: 1300 nm nominal (1260 nm maximum, 1360 nm minimum)
Maximum Output Power: - 7.0 dBm
Minimum Output Power: - 15.0 dBm
Sensitivity: -34.0 dBm
Maximum Input Power: - 7.0 dBm
Link Power Budget: 19.0 dB

100BaseFX, SINGLEMODE PN 065-1200SC20ED:
Type: MQW Laser
Wavelength: 1300 nm nominal (1261 nm maximum, 1360 nm minimum)
Maximum Output Power: - 5.0 dBm
Minimum Output Power: - 12.0 dBm
Sensitivity: -35.0 dBm
Maximum Input Power: - 5.0 dBm
Link Power Budget: 23.0 dB

100BaseFX, SINGLEMODE PN 065-1200SC20XLD:
Type: MQW Laser
Wavelength: 1300 nm nominal (1270 nm maximum, 1350 nm minimum)
Maximum Output Power: + 3.0 dBm
Minimum Output Power: - 3.0 dBm
Sensitivity: -37.0 dBm
Maximum Input Power: - 0.0 dBm
Link Power Budget: 34.0 dB

  • PHYSICAL CHARACTERISTICS

Dimensions: 17.3"W x 8.0"D x 1.8"H (440mm x 205mm x 45m)
Weight: 6.8 lbs. (3.1 kg) maximum
Standard 19-in rack mounting (hardware included)

  • ENVIRONMENTAL CHARACTERISTICS

Operating:
Temperature: 0º - 40º C (32º - 140º F)
Relative Humidity: 10 to 90%, non-condensing
Non-Operating/Storage:
Temperature: -25°C to 70°C (-13°F to 158°F)
Relative Humidity: 10 to 90%, non-condensing

  • POWER/ ELECTRICAL CHARACTERISTICS

Heat Dissipation/Hour: 85 BTU/hr
Maximum Wattage: 52 W.
Current: 2.0 A maximum
AC Input: 100 ~ 260 VAC, 47 ~ 63 Hz internal universal power supply
Above specifications apply to each power supply (2 are provided standard, in a load-sharing redundant configuration)

  • EMISSIONS

FCC part 15 Class A, CISPR Class A, VCCI Class A, CE Mark

  • WARRANTY

Limited Lifetime
