Residential Media Enclosure

Residential Media Enclosure

OVERVIEW

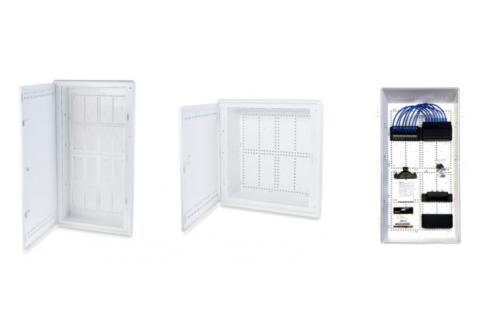

Residential Media Enclosure

KEY FEATURES



  • Versatile design, modular and easily scalable to accommodate various equipment such as wireless connectivity, Cat6, VOIP, ONTs, gateways, battery backup and SOHO access modules.
  • Two sizes – 30″ and 15″
  • Can be wall-mounted or installed between studs utilizing built in mounting ears.
  • Knock-outs: 30″ enclosure Top has (5) 2″ knockouts. Bottom has (2) 1 1/4″ and (2) Single gang box knock-outs to accommodate AC power outlets. 15″ enclosure Top has (8) 1 1/4″ knock-outs. Bottom has (2) 1 1/4″ and (2) Single gang box Knock-outs.
  • Easily relocate modules using provided push pins.
  • Hinged door with lock-set option, door can be relocated on either side of enclosure.
  • Built-in Louvres for improved heat dissipation.
  • Unique mounting grid organizes components in a square when mounting to the inside of the enclosure for easy access and management.
  • Constructed with ABS thermoplastic to reduce electrical interference with wireless components.
  • UL listed.

SPECIFICATIONS



  • CONSTRUCTION

Enclosure: Reinforced ABS Thermoplastic-white finish.

  • DIMENSIONS

RBP-S30C: 28(H) x 14.38(W) x 3.96in(D) (71.1 x 36.5 x 10.1cm)
RBP-S15C: 14(H) x 14.38(W) x 3.96in(D) (35.6 x 36.5 x 10.1cm)

  • WEIGHT

RBP-S30C: ~3.3 kg (7.40 lb.)
RBP-S15C: ~1.9 kg (4.20 lb.)

  • ENVIRONMENTAL CONDITIONS

Storage: -40 °C +70 °C (-40 °F +158 °F)
Operation: -20 °C +60 °C (+13 °F +140 °F)
RH (operation): max non-condensing 93 %

  • WARRANTY

5-year limited component
