1000BaseSX WDM Multimode SFP Modules

1000BaseSX WDM Multimode SFP Modules

Overview
Key Features
Specifications
Downloads
Ordering Information

OVERVIEW

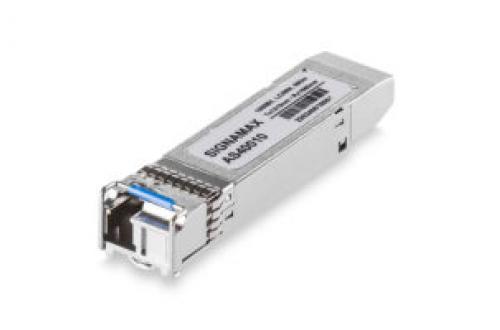

1000BaseSX WDM Multimode SFP Modules

KEY FEATURES

Supports 1000Base-SX up to 550m over either 50/125μm or 62.5/125μm Multimode fiber
Multi-Source Agreement (MSA) Compliant
Hot-pluggable
RoHS compliant and lead-free
Single +3.3V Power Supply
Compliant with SFF8472 diagnostic monitoring interface

SPECIFICATIONS

Part Number	TX/RX Spectrum	Light Source	Link Power Budget	Typical Max. Distance	Supply Voltage	Operating Temp.
AS40010	Tx: 1310 nm Rx: 1550nm	FP Laser	10dBm	550m on 50μ or 62.5μ fiber*	3.3 V	0 ~ 70° C
AS40020	Tx: 1550 nm Rx: 1310nm	FP Laser	10dBm	550m on 50μ or 62.5μ fiber*	3.3 V	0 ~ 70° C
AS41010	Tx: 1310 nm Rx: 1550nm	FP Laser	10dBm	550m on 50μ or 62.5μ fiber*	3.3 V	-40 ~ 85 °C
AS41020	Tx: 1550 nm Rx: 1310nm	FP Laser	10dBm	550m on 50μ or 62.5μ fiber*	3.3 V	-40 ~ 85 °C

* Maximum distances attainable on multimode fiber circuits are dependent upon a circuit’s conditions;
i.e., the number of splices and patch panels and the number of bends in the circuit path.

DOWNLOADS

ORDERING INFORMATION

Part Number	Description
AS40010	1000BaseSX WDM SFP Tx:1310nm Rx:1550nm LC/MM 550m
AS40020	1000BaseSX WDM SFP Tx:1550nm Rx:1310nm LC/MM 550m
AS41010 (Special Order)	1000BaseSX Extended Temperature WDM SFP Tx:1310nm Rx:1550nm LC/MM 550m
AS41020 (Special Order)	1000BaseSX Extended Temperature WDM SFP Tx:1550nm Rx:1310nm LC/MM 550m
