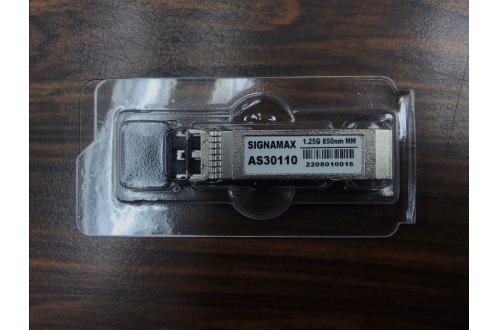

1000BaseSX Multimode SFP Module, Cisco Compatible

1000BaseSX Multimode SFP Module, Cisco Compatible

OVERVIEW



1000BaseSX Multimode SFP Module, Cisco Compatible

KEY FEATURES



  • Supports 1000Base-SX up to 550m over 50/125μm or 220m over 62.5/125μm Multimode fiber
  • Multi-Source Agreement (MSA) Compliant
  • Hot-pluggable
  • RoHS compliant and lead-free
  • Single +3.3V Power Supply
  • Compliant with SFF8472 diagnostic monitoring interface

SPECIFICATIONS

Part Number

TX/RX
Spectrum

Light
Source

Link
Power Budget

Typical Max.
Distance

Supply
Voltage

Operating
Temp.

AS30110

850 nm

VCSEL

9dBm

550m on 50μm or 220m on 62.5μ fiber*

3.3 V

0 ~ 70° C









* Maximum distances attainable on multimode fiber circuits are dependent upon a circuit’s conditions;
   i.e., the number of splices and patch panels and the number of bends in the circuit path.

DOWNLOADS

Specifications Specifications

ORDERING INFORMATION

Part Number

Description

AS30110

1000SX Multimode SFP, Cisco Compatible, 550m
