OVERVIEW

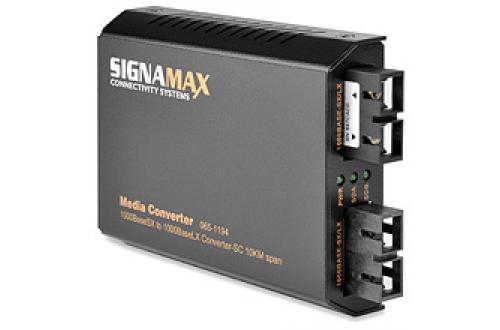

The Signamax Gigabit Singlemode to Multimode Media Converters provide a flexible and intelligent solution to extend distances over multimode or singlemode fiber. They can be installed without modification into the Signamax Rack Mount Chassis system. Designed to expand the scope of your Gigabit Ethernet network applications such as corporate data infrastructures and IP security networks.

KEY FEATURES

Convert singlemode fiber to multimode fiber at gigabit speed
P/N 065-1198 repeats singlemode fiber signals
at gigabit speed for phase jitter correction
IEEE 802.3z standard supported
Supports wall mounting, DIN-rail mounting
or use with media converter rack mount chassis
Lifetime Warranty

SPECIFICATIONS

APPLICABLE STANDARDS

IEEE 802.3z 1000BaseSX
IEEE 802.3z 1000BaseLX

PORTS

P/N 065-1194/1194ED:
1 – Fiber optic 1000BaseSX port plus
1-fiber optic 1000BaseLX port

PERFORMANCE

Latency: ≤4.2 μs (FIFO).
Throughput, per port:
@ 1000Base: 1,488,100 pps (64-byte packets)

LED STATUS INDICATORS

Per Unit: Power
Per Fiber Port:
Port A Link (SDA); Port B Link (SDB)

FIBER INTERFACE

Type: MQW Laser
Wavelength:
P/N 065-1194: 1300 nm nominal
(1270 nm max.,1355 nm min.)
P/N 065-1194ED: 1300 nm nominal
(1261 nm max.,1360 nm min.)
Max Output Power:-3.0 dBm
Min Output Power:
P/N 065-1194: -11.0 dBm
P/N 065-1194ED: -8.0 dBm
Sensitivity: -22.0 dBm
Max Input Power: -3.0 dBm
Link Power Budget:
P/N 065-1194: 11.0 dB
P/N 065-1194ED: 14.0 dB

ELECTRICAL CHARACTERISTICS

12 V DC. External 100 – 240 V AC 50/60 Hz.
Power supply included.

ENVIRONMENTAL REQUIREMENTS

Operating Temperature: 32°F to 122°F (0°C to 50°C);
Storage Temperature: -14°F to 158°F (-10°C to 70°C)
Relative Humidity: 10% to 95% (non-condensing)

PHYSICAL CHARACTERISTICS

Dimensions: 4.33” L x 3.16” W x 0.91” H
(109.2 mm x 83 mm x 23.8 mm)
Weight: 0.33 lb (150 g)

CERTIFICATIONS

CE, FCC, ROHS, VCCI Class A

WARRANTY

Limted Lifetime

DOWNLOADS

Specifications

User’s Guide

ORDERING INFORMATION

Part Number	Description
065-1194	1000BaseLX SC/SM, 10 km Span to 1000BaseSX SC/MM, 220 m Span on 62.5 μm Fiber / 550 m Span on 50 μm Fiber Media Converter
065-1194ED	1000BaseLX SC/SM, 20 km Span to 1000BaseSX SC/MM, 220 m Span on 62.5 μm Fiber / 550 m Span on 50 μm Fiber Media Converter
065-1198XLD	1000BaseLX SC/SM, 20 km Span to 1000BaseLX, SC/SM 20 km Span Repeater -Special order

Mounting Options

Part Number	Description
AM10010	DIN-Rail Mounting for 065-11xx Series and 065-1696SFPDR Media Converters
065-1185	16-Bay Rack Mount Media Converter Chassis, AC
