100BaseLX Singlemode SFP Modules for GE Port – 15 km

Overview
Key Features
Specifications
Downloads
Ordering Information

OVERVIEW

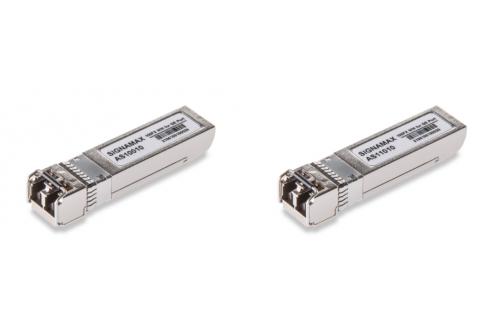

100BaseLX Singlemode SFP for use in Gigabit SFP Port

Our NEW SFPs offer 100FX Multimode or Single mode SFP modules that work in Gigabit SFP ports. An internal FPGA allows 1000Base-X communication with SFP port and 100FX protocol on fiber. They are available on both Commercial and Industrial models.

KEY FEATURES

Supports 100Base-LX up to 15km over 9/125μm SingleMode fiber
Multi-Source Agreement (MSA) Compliant
Built-in FPGA Converts Gigabit SERDES interface to Fast Ethernet
Hot-pluggable
RoHS compliant and lead-free
Single +3.3V Power Supply
Extended temperature model available
Compliant with SFF8472 diagnostic monitoring interface

SPECIFICATIONS

Part Number	TX/RX Spectrum	Light Source	Link Power Budget	Typical Max. Distance	Supply Voltage	Operating Temp.
AS10020	1310 nm	Fabry-Perot (FP) laser	15 dBm	15 km*	3.3 V	0 ~ 70° C
AS11020	1310 nm	Fabry-Perot (FP) laser	15 dBm	15 km*	3.3 V	-40 ~ 85° C

* Maximum distances attainable on multimode fiber circuits are dependent upon a circuit’s conditions; i.e.,
the number of splices and patch panels and the number of bends in the circuit path.

DOWNLOADS

Data sheet

ORDERING INFORMATION

Part Number	Description
AS10020	100LX Singlemode SFP for GE Port, 15km
AS11020	100LX Extended Temperature Singlemode SFP for GE Port, 15km
