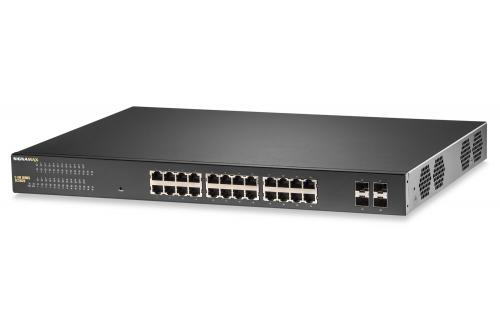

The Signamax C-310 Series 24 port Gigabit 740W PoE+ switch includes an impressive set of features in a high-value package, making it ideal for IP video surveillance applications. With 740W PoE budget, the C-310 Series switch supports the full 30 watts of PoE+ on all 24 ports simultaneously to power the latest PTZ cameras. The C-310 Series includes a DHCP Server, Surveillance VLAN and even use ONVIF to automatically detect video cameras and NVRs and optimize VLAN and QoS settings.
The C-310 Series is built from the ground up for easy deployment and management without compromising any of the power and flexibility traditionally found in enterprise-class switches.
RJ-45 (Downlink): 24 10/100/1000
SFP Uplink Ports: 4
PoE Ports: 24
PoE Budget: 740W
Support IEEE 802.3af/IEEE802.3at on each port
Dynamic Power Allocation
PoE Scheduling
Switching Capacity: 56Gbps
Forward Rate: 41.7Mpps
MAC Address Table: Up to 8K
256MB DRAM
Up to 12Mb Packet Buffer
16MB Flash memory
Supports 10K Jumbo Frames
Wirespeed forwarding
IPv4/IPv6 Dual Protocol Stack
DDOS Protection
Port Isolation
Broadcast/Multicast/Unknown Storm Control
Up to 256 Access Control Lists (ACL) based on L2/L3/L4
Port Security
AAA (IEEE 802.1X RADIUS/TACACS+)
IP Source Guard
DHCP Snooping
Encrypt switch access with SSH and SSL
Up to 56 Static routes
DHCP v4/v6 Client / DHCP Relay / DHCP Server
SFP ports support IEEE 802.3u (100FX), 802.3z (1000SX/LX/LHX/ZX)
IEEE 802.3x Flow Control
Spanning Tree:
IEEE 802.1D Spanning Tree Protocol (STP),
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP),
IEEE 802.1s Multiple Rapid Spanning Tree Protocol
Loopback Detection
BPDU Filter/Guard
Root Guard
Up to 4094 IEEE 802.1Q (802.3ac) Vlans:
Port-Based/MAC-Based/Protocol-Based(IEEE 802.1v)
Guest VLAN
Auto Voice/Surveillance VLAN
Dynamic VLAN Assignment
802.3ad Link Aggregation (static and LACP)
Multicast:
IGMP v1/v2/v3 snooping
IGMP Filtering/Throttling:
IGMP Queries
IGMP Immediate leave
MLD Snooping
mDNS
IEEE 802.1AB LLDP/LLDP-MED
IEEE 802.3az Energy Efficient Ethernet
Web-based Graphical User Interface (GUI)
Industry-standard CLI (Telnet/SSH) with context-sensitive help
Comprehensive SNMP MIB support for standards based device management
Dual Image/Configuration
RMON (groups 1,2,3 and 9)
NTP
SNMP v1/v2/v3
Rate Limiting (Ingress/Egress Port-Based)
Priority Queues Schedule (WRR/Strict Priority/Hybrid QoS)
Port-Based QoS
IPv4/IPv6 DSCP
DiffServ
Auto VOIP/Surveliiance
8 HW Queues per port for 802.1p priority tagging
Cable Test
Digital Diagnostic Monitoring (DDM) on SFP Ports
Ping polling for IPv4 and IPv6
TraceRoute for IPv4 and IPv6
Port Mirror (One to One, One to Many)
Event/Error Log/Syslog/SMTP Alerts
Max Power Consumption: 820W
Power Supply AC Input: 100 – 240 V AC, 50/60 Hz
MTBF: 370K hrs
Dimensions: 17.25” W x 12.46” D x 1.7” H (44 cm x 31.65 cm x 4.4 cm)
19 in rack mounting hardware included
Weight: 10.28 lb (4.665 kg)
Heat Dissipation: 2606.8 (Btu/H)
Operating Temperature: 32 to 104°F (0 to 40°C)
Storage Temperature: -40 to 158°F (-40 to 70°C)
Operating/Storage Humidity: 10 to 90% (non-condensing)
Emissions: CE Mark: EN 55032, EN55035; FCC Part 15 Class B
Immunity: IEC 61000-3-2/3
Five years (Including power supply)
|
Part Number |
Description |
|
|
SC31020 |
|
