KEY FEATURES
- Terminal connector to terminal connector.
- Perfect for video or data signal protection.

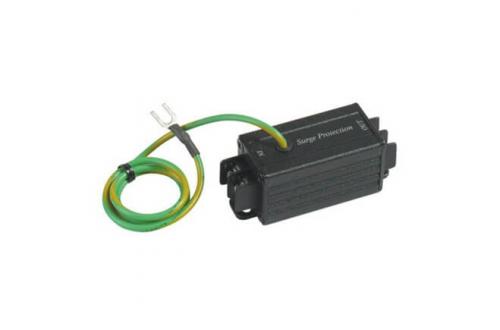

JSP-007 UTP Data Surge Protector
OVERVIEW
UTP Video Surge Protector Terminal Connector
Application for protects equipment from high voltage surges such as lightning strikes. UL grounding requirements for coaxial cable offer protection from hazardous voltages that may occur on the shielding. Because of the physical length of ground wires, UL grounding systems may appear as an open circuit to lightning caused, high frequency surges and provide no protection from these surges getting into a home and destroying CATV converters, TV sets, VCR, Camera etc.
SPECIFICATIONS
|
Item No. |
JSP-007 |
|
Surge Protection Attack Time |
1 ns |
|
Maximum Surge Voltage |
4 KV |
|
Surge Life |
300 surges of 100Amps |
|
Normal Resistance Across Coax |
10,000 MΩ |
|
Surge Resistance |
Approx. 0Ω |
|
BAND PASS |
0~1 GHZ |
|
Power Passing Capability |
130V DC / AC, 65 Vrms at10 Amps |
|
Insertion Loss |
Less than 0.2 dB |
|
Return Loss (75 ohms) |
16dB |
|
Power IN Put – for JSP-010 |
AC 40V(MAX), DC56V(MAX) |
|
Connectors |
Terminal |
|
Dimensions |
65x25x25 (mm) |
|
WEIGHT |
65 (g) |
DOWNLOADS
Data sheetORDERING INFORMATION
|
Part Number |
Description |
|
|
JSP-007 |
|
