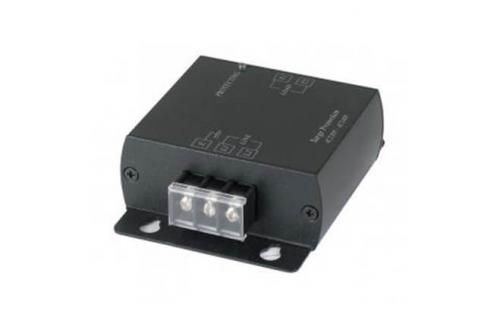

JSP-006-AC220 AC Power Surge Protection Device Terminal Connector

JSP-006-AC220  AC Power Surge Protection Device Terminal Connector

OVERVIEW

 AC Power Surge Protector Terminal Connector

KEY FEATURES



  • Terminal connector to terminal connector.
  • Application for protect AC220-240V.
  • Providing protection for equipments or instruments with power consumption below 4Amp.

SPECIFICATIONS



Item No.

JSP-006-AC220

Nominal peak voltage Wire

>300V

Nominal peak voltage Wire~grounding

>300V

Surge Current Capacity

6000A (8x20uS)

Surge Voltage Capacity

6000V (1.2uS x 50 uS)

Response time

<0.1uS

Leakage current Wire

<1mA (at300VAC)

Leakage current Wire~grounding

<1mA (at300VAC)

Max. Load Current

4A (Max)

Temperature

Operation: 0 to 55,

Storage: -20 to 85,

Humidity: up to 95%

Material

Metal Black

Dimension

67 x 87 x 28.5 (mm)

Weight

140 (g)



DOWNLOADS

Data sheetData sheet

ORDERING INFORMATION



Part Number

Description

JSP-006-AC220

AC Power Surge protection Device Terminal Connector / AC220-240V
