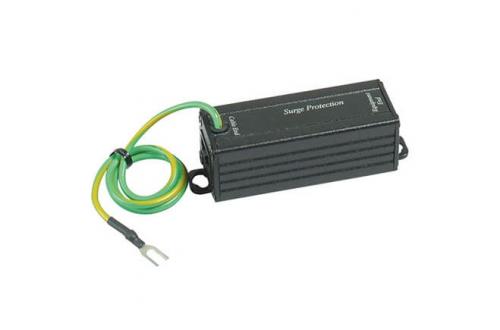

JSP-003-1-P POE Surge Protector

JSP-003-1-P POE Surge Protector

OVERVIEW

 PoE Network Surge Protector


JSP-003-1-P designed to protect Power-Over-Ethernet (POE) data/communication lines in local and wide area networks up to 100 Base-T transmission speeds.

KEY FEATURES



  • Performs a different function than grounding requirements.
  • Protects equipment from high voltage surges from nearby lightning strikes.
  • RJ45 Jack to RJ45 Jack.
  • Power and signal line protection.
  • 10/100 Base-T CAT5e/CAT5e compatible.
  • Support Mid-Span PoE and End Span PoE.
  • 802.3af and 802.3at PoE (Power over Ethernet) compatible.
  • Application for PoE (Power over Ethernet) protection.

SPECIFICATIONS



Item No.

JSP-003-1-P

Surge Protection Attack Time

1 nanoseconds

Maximum Surge Voltage

4 KV

Surge Life

30000 surges@4KV

Normal Resistance Across Coax

10,000 MΩ

Surge Resistance

Approx. 0Ω

BAND PASS

0~1 GHZ

Insertion Loss

Less than 0.2 dB

Return Loss (100 ohms)

16dB

Connectors

RJ45

Dimensions

 85x25.4x25.4 (mm)

WEIGHT

80 (g)

DOWNLOADS

Data sheetData sheet

ORDERING INFORMATION



Part Number

Description

JSP-003-1-P

 POE Surge Protector
