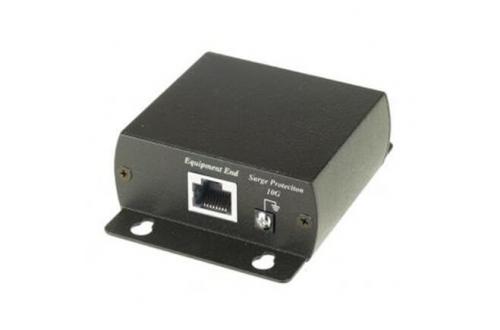

JSP-003 HDBaseT/10G Ethernet Surge Protector

Overview
Key Features
Specifications
Downloads
Ordering Information

OVERVIEW

HDBaseT & 10G Network Surge Protector

JSP-003 is a in-line RJ45 Ethernet surge protector. It installs simply on a CAT5, CAT.5e or CAT6 4 twisted pair cable. Device is using special diodes and gas discharge modules for high performance lightning protection.

The special feature to support bandwidth data rate support up to 10Gbps to protect high value products.

KEY FEATURES

Protects equipment from high voltage surges from nearby lightning strikes.
Special design to protect high data rate network equipments,especially on HDBaseT CAT5e extender or any computer equipments work with network.
Support the bandwidth data rate up to 10Gb/s (Max).
Built in ESD and lightning protection.
Complaint IEC61000-4-2, IEC61000-4-5, IEC1000-4-5.
Four pairs protection for wide range of applications: Any TCP/IP Devices, Network, switch hub, PC modem, server, CCTV SYSTEM, IP camera…etc

SPECIFICATIONS

Item No.	JSP-003
Input Interface	RJ45
Output Interface	RJ45
Response time	<1 ns="" td="">
ESD protection	15KV(Air),8 KV (Contact) IEC 61000-4-2 compliant
Lightning protection	2KA (8/20μs)/6KV(8/20μs) IEC 61000-4-5 compliant
Bandwidth (Data rate)	Up to 10Gb/s (Max)
Insertion Loss	Less than 0.2 dB
Return Loss (100 ohms)	16dB
Temperature	Operation: -10 to 75℃, Storage: -40 TO 90℃, Humidity: up to 95%
Dimensions	67 × 87 × 27(mm)
Weight	126 (g)

DOWNLOADS

Data sheet

ORDERING INFORMATION

Part Number	Description
JSP-003	HDBaseT & 10G Network Surge Protector
