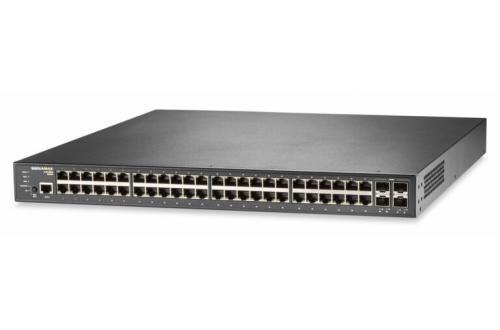

The Signamax C-500 series of fully managed switches are designed for demanding network environments with dual hot swappable power supplies and 10G SFP+ Uplinks.
All switches have the capacity for concurrent 30W per port PoE+ delivery.
The C-500 switches have full Layer 2 capabilities with enhanced access security, ACLs, traffic prioritization, and IPv6 support. The C-500 Series switches are built from the ground up for easy deployment and management without compromising any of the power and flexibility traditionally found in enterprise-class switches.
RJ-45 (Downlink): 48 10/100/1000
SFP+ Uplink Ports: 4
PoE Ports: 48
PoE Budget: 820W (1640W with AP50010)
Support IEEE 802.3af/IEEE802.3at on each port
Dynamic Power Allocation
PoE Scheduling
Auto-checking
Switching Capacity: 176Gbps
Forward Rate: 130.944Mpps
MAC Address Table: Up to 32K
Supports 14K Jumbo Frames
Wirespeed forwarding
IPv4/IPv6 Dual Protocol Stack
DDOS Protection
Port Isolation
Storm Control
Broadcast/Multicast/Unknown Storm Control
Up to 512 Access Control Lists (ACL) based on L2/L3/L4
Port Security
AAA (IEEE 802.1X RADIUS/TACACS+)
IP Source Guard
DHCP Snooping
Encrypt switch access with SSH and SSL
Static routes
DHCP v4/v6 Client / DHCP Relay / DHCP Server
SFP+ ports support IEEE 802.3u (100FX), 802.3z (1000SX/LX/LHX/ZX), 802.3aq(10GBASE-SR/LR/LRM)
IEEE 802.3x Flow Control
Spanning Tree:
IEEE 802.1D Spanning Tree Protocol (STP),
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP),
IEEE 802.1s Multiple Rapid Spanning Tree Protocol (MSTP,64 instances)
Loopback Detection
BPDU Filter/Guard
Root Guard
Up to 4094 IEEE 802.1Q (802.3ac) Vlans:
Port-Based/MAC-Based/Protocol-Based(IEEE 802.1v)
Guest VLAN
Auto Voice VLAN
Dynamic VLAN Assignment
GARP VLAN Registration Protocol (GVRP)
802.3ad Link Aggregation (static and LACP)
Ring Management:
ITU-T G.8031 Ethernet Linear Protection Switching
ITU-T G.8032 Ethernet Ring Protection Switching (ERPS)
Multicast:
IGMP v1/v2/v3 snooping
IGMP Queries
IGMP Immediate leave
MLD v1/v2 Snooping
IEEE 802.1AB LLDP/LLDP-MED
IEEE 802.3az Energy Efficient Ethernet
Q-in-Q
Web-based Graphical User Interface (GUI)
Industry-standard CLI (Telnet/SSH) with context-sensitive help
Console management port on the front panel for ease of access
Comprehensive SNMP MIB support for standards based device management
Dual Image/Configuration
RMON (groups 1,2,3 and 9)
NTP/SNTP
IEEE 1588 v2 Precision Time Protocol (PTP)
SNMP v1/v2/v3
Rate Limiting (Ingress/Egress Port-Based)
Priority Queues Schedule (WRR)
Port-Based QoS
IPv4/IPv6 DSCP
DiffServ
Auto VOIP
8 HW Queues per port for 802.1p priority tagging
Policy based dynamic QoS
Diag LED
Cable Test
Digital Diagnostic Monitoring (DDM) on SFP Ports
Ping polling for IPv4 and IPv6
Port Mirror (One to One, One to Many)
Remote Mirror
Event/Error Log/Syslog/SMTP Alerts
SFlow
Max Power Consumption: 1840W
Power Supply AC Input: 100 – 240 V AC, 50/60 Hz
Dimensions: 17.4” W x 17.1” D x 1.7” H (44 cm x 44 cm x 4.4 cm)
19 in rack mounting hardware included
Weight: 12.45 lb (5.6 kg)
Operating Temperature: 32 to 113°F (0 to 45°C)
Storage Temperature: -4 to 158°F (-20 to 70°C)
Operating/Storage Humidity: 10 to 95% (non-condensing)
Emissions: CE Mark: EN 55022, Class A; FCC Part 15 Class A
Immunity: IEC 61000-3-3, 61000-4-2/3/4/5/6/11
Five years (Including power supply)
