24 or 48 VDC power output
Overvoltage and short circuit protection
Extended operating temperature range -40 to 140 ºF (-4 0 to 60 ºC)
UL508 approved for industrial control equipment
Overload protection up to 150% of rated power
Built-in DIN-rail mount for hassle free installation
Adjustable voltage +/- 10%
100~240 VAC input range
Input: 100 – 240 Volts AC or 120 – 370 Volts DC
Output:
AP10010: 48 Watts, 24V DC, 2.0 Amps
AP30010: 120 Watts, 48V DC, 2.5 Amps
AP30020: 240 Watts, 48V DC, 5.0 Amps
Overvoltage Protection:
AP10010: 40V DC
AP300XX: 56V DC
Overload Protection:
AP10010: 150% – 250% of rated output power
AP30010: 160% – 200% of rated output power
AP30020: 130% – 150% of rated output power
Protection Type:
Short Circuit Protection: Auto Recovery
Over Voltage Protection: Auto Recovery
Overload Protection: Power Limited
Inrush Current:
AP10010: 11 Amps; 115 VAC or 22 Amps; 230V AC
AP300XX: 22 Amps; 115 V AC or 44 Amps; 230V AC
Operating Temperature:
AP10010: -40 to 158°F (-40 to 70°C)
AP300XX: -40 to 140°F (-40 to 60°C)
Storage Temperature: -40 to 185°F (-40 to 85°C)
Operating Humidity: 5 to 95% (non-condensing)
Dimensions:
AP10010: 2.97 x 1.77 x 3.78in (75 x 45 x 96mm)
AP30010: 2.95 x 4.76 x 4.33in (75 x 121 x 110mm)
AP30020: 3.93 x 4.76 x 4.33in (100 x 121 x 110mm)
Housing:
AP10010: Plastic Case
AP300XX: Metal Case
Weight:
AP10010: 0.51lb (0.23kg)
AP30010: 1.48lb (0.67kg)
AP30020: 2.6lb (1.18kg)
Safety:
Safety: UL508, EN60950, CSA 22.2
EMI: EN55011, EN55022 (CISPR22) Class B
EMS: EN61000-4-2/3/4/5/6/8/11
Five Years

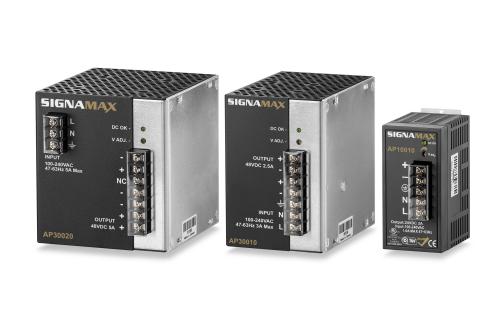

24V DC Power Supplies
| Part Number | Description |
| AP10010 | 48W Industrial Power Supply - 24V DC |
48V DC Power Supplies
| Part Number | Description |
| AP30010 | 120W Industrial Power Supply - 48V DC |
| AP30020 | 240W Industrial Power Supply - 48V DC |
