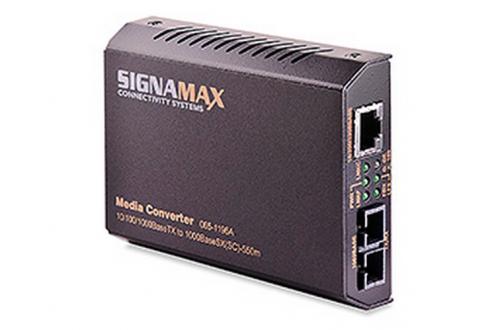

The Signamax 10/100/1000 to 1000 SX/LX Switching Media Converters provide an intelligent solution for long distance connections between legacy 10BaseT and 100BaseTX networks and 1000Base Gigabit Ethernet networks. The built-in switch enables the fiber cable connection to operate at 1000 Mbps connected to either a 10BaseT, 100BaseTX, or a 1000BaseT network, while remaining completely 1000BaseSX or 1000BaseLX standard-compliant for the fiber optic connection. The fiber connection can also operate in full duplex mode whether the RJ-45 port is connected to a full duplex switch or a half duplex legacy hub.
Improvements in the this series of media converters include: extremely low latency, the ability to force the RJ-45 port to 100Base or 10Base full or half-duplex modes, provide auto-negotiation on the 1000Base fiber port or forced full-duplex mode where required, and the enabling or disabling of the Link Fault Signaling feature.
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3ab 1000BaseT
IEEE 802.3z 1000BaseSX
IEEE 802.3z 1000BaseLX
IEEE 802.3x Flow Control
1 – RJ-45 10/100/10000BaseT/TX port.
1 -1000BaseSX or 1000BaseLX fiber optic port.
Per Unit: Power; LFS Status; Full Duplex
Per RJ-45 Port: Link Copper; Copper port speed
(Green = 1000 Mbps, Amber = 100 Mbps, off = 10 Mbps)
Per Fiber Port: Link Fiber
Latency: ≤1.5 μs (FIFO).
MTBF: 985,339.89 hours (112.48 years),
calculated via the Part Stress Analysis Method.
Throughput, per port:
@ 1000Base: 1,488,100 pps (64-byte packets);
@ 100Base: 148,810 pps (64-byte packets)
Switch Fabric Speed: 4.0 Gbps
(non-blocking, wire speed performance)
Frame Buffer: 12K total
Jumbo Frame Support: 9K packets supported
| No. | Down | Up | Notes |
| 1 | Disable LFS | Enable LFS | LFS: Link Fault Signaling function |
| 2 | Enable Auto-Negotiation for TX port | Enable Force mode for TX port | |
| 3 | TX port Force mode: Full-duplex | TX port Force mode: Half-duplex | |
| 4 | TX port Force mode: 100 Mbps | TX port Force mode: 10 Mbps | |
| 5 | Function reserved | Function reserved | |
| 6 | Function reserved | Function reserved |
Type:
P/Ns 065-1196A/1196AED: Laser Diode
P/Ns 065-1196ALX/1196ALXED: MQW Laser
Wavelength:
P/N 065-1196A: 850 nm nominal (830 nm max.,860 nm min.)
P/N 065-1196AED: 1310 nm nominal (1270 nm max.,1355 nm min.)
P/N 065-1196ALX: 1300 nm nominal (1270 nm max.,1355 nm min.)
P/N 065-1196ALXED: 1300 nm nominal (1261 nm max.,1360 nm min.)
Max Output Power:
P/N 065-1196A: -4.0 dBm
P/N 065-1196AED: 0.0 dBm
P/Ns 065-1196ALX/1196ALXED: -3.0 dBm
Min Output Power:
P/N 065-1196A: -9.5 dBm
P/N 065-1196AED: -6.0 dBm
P/N 065-1196ALX: -11.0 dBm
P/N 065-1196ALXED: -8.0 dBm
Sensitivity:
P/N 065-1196A: -13.5 dBm
P/N 065-1196AED: -17.0 dBm
P/Ns 065-1196ALX/1196ALXED: -22.0 dBm
Max Input Power:
P/N 065-1196A: -13.5 dBm
P/N 065-1196AED: 0.0 dBm
P/Ns 065-1196ALX/1196ALXED: -3.0 dBm
Link Power Budget:
P/N 065-1196A: 4.0 dB
P/N 065-1196AED/ 1196ALX: 11.0 dB
P/N 065-1196ALXED: 14.0 dB
12 V DC. External 100 – 240 V AC 50/60 Hz. Power supply included.
Operating Temperature: 32°F to 122°F (0°C to 50°C)
Storage Temperature: -14°F to 158°F (-10°C to 70°C)
Relative Humidity: 5% to 95% (non-condensing)
Dimensions: 4.33” L x 3.16” W x 0.91” H
(109.2 mm x 83 mm x 23.8 mm)
Weight: 0.33 lb (150 g)
CE, FCC, ROHS, VCCI Class A
Limited Lifetime
|
Part Number |
Description |
|
065-1196A |
10/100/1000BaseT/TX to 1000BaseSX Media Converter, |
|
065-1196AED |
10/100/1000BaseT/TX to 1000BaseSX Media Converter, |
|
065-1196ALX |
10/100/1000BaseT/TX to 1000BaseLX Media Converter, SC/SM, 10 km Span |
|
065-1196ALXED |
10/100/1000BaseT/TX to 1000BaseLX Media Converter, SC/SM, 20 km Span |
Mounting Options
|
Part Number |
Description |
|
AM10010 |
DIN-Rail Mounting for 065-11xx Series and 065-1696SFPDR Media Converters |
|
065-1185 |
16-Bay Rack Mount Media Converter Chassis, AC |
