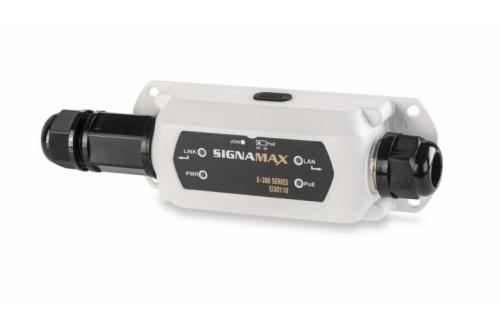

E-300 Industrial Ethernet & PoE Over Coax, Remote

E-300 Industrial Ethernet & PoE Over Coax, Remote

OVERVIEW

  The Signamax E-300 Series extenders provide businesses a comprehensive solution to connect IP cameras, Wireless Access Points, Computers or entire buildings using a variety of legacy and new cables over long distances. Staying connected even when it’s out of reach, just got easier.



E-300 Coax Models

E-300 Ethernet and PoE over Coax, Local AC Powered

 E-300 Ethernet and PoE over Coax, Local PoE Powered



E-300 Ethernet and PoE over Coax, Remote

 E-300 Industrial Ethernet and PoE over Coax, Remote

KEY FEATURES



Reuse existing coax cable

PoE up to 4,000ft (1200m) over RG6 cables

Provide up to 57W to the powered device

No AC power required

IP66/IK10 Housing with 6kV Surge Protection

Zero touch Plug and Play connectivity

5 year hardware warranty & support at no additional cost

Paired with EC30010 or EC30020

SPECIFICATIONS



  • PORTS

BNC, RJ45

  • ROLE

Remote

  • PERFORMANCE

Supports 10K Jumbo Frames
Wirespeed Forwarding

  • LAYER 2

IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3 Auto-Negotiate
IEEE 802.3x Flow Control
PoE: Support IEEE 802.3af; IEEE802.3at; IEEE 802.3bt

  • ELECTRICAL CHARACTERISTICS

Powered: From Local
Power Consumption: 2W Max
Surge Protection: 6kV

  • PHYSICAL CHARACTERISTICS

Dimensions: 6.18 x 2.2 x 1.56 in (15.7 x 5.58 x 3.98 cm)
Weight: 0.66 lb (0.3 kg)
Housing: IP66/IK10
Mounting: Wall mountable (included)

  • ENVIRONMENTAL REQUIREMENTS

Operating Temperature: -40 to 167°F (-40 to 75°C)
Storage Temperature: -40 to 185°F (-40 to 85°C)
Operating/Storage Humidity: 5 to 95% (non-condensing)

  • CERTIFICATIONS

EMC: CE mark, FCC Part 15 Class A; VCCI Class A
Safety: CE/LVD EN60950-1

  • WARRANTY

Five years (Including power supply)



ORDERING INFORMATION



Part Number Description
EI30110 E-300 Industrial Ethernet & PoE Over Coax, Remote



Pair With:

Part Number Description
EC30010 E-300 Ethernet & PoE Over Coax, Local AC Powered
EC30020 E-300 Ethernet & PoE Over Coax, Local PoE Powered
