KEY FEATURES
Slim Type Lock Keystone Jack
Categories: 5E / 6 / 6A
Meet ANSI/TIA/EIA-568B(Cat.5e/Cat.6)/568C(Cat.6A),ISO/IEC 11801&EN50173

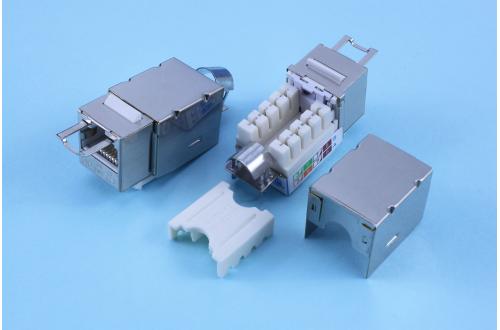

FTP 90 Degree Lock Keystone Jack
OVERVIEW
Safety lock type (C5E / C6 / C6A) (IDC: 110 Type / Dual)
Keystone with lock-saving feature is a very new product, they have mastered the security lock technology also has many national patents,
Set the lock to the top of the slot in the RJ45 or RJ12 Jack so that Jack will still be directly connected to the RJ45 or RJ12 cable and in line with IEC-603 standard size.
(This section product has researches and develops one time hits line tool.)
SPECIFICATIONS
- - RoHS
- - Meets C5e EIA/TIA 568B Standard
- - Meets C6 EIA/TIA 568B Standard
- - Meets C6A EIA/TIA 568C Standard
- - For 22-26 AWG
- - IDC Punch Down Cycle: Over 250 Cycles (min.)
- - Jack Insertion Cycle: Over 2000 Cycles (min.)
- - Operation Temperature: -40 ~ +70 Degree Celsius
- - Body: Fireproof ABS UL-94V0
- - Metallic Case: Metal
- - Jack: 8P8C 50 micro inches gold plated
- - PCB: FR-4 / UL-94V0
- - IDC Cap: Fireproof ABS UL-94V0
- - IDC Body: Fireproof ABS UL-94V0
- - IDC Pin: Bronze & Tinned
- - Insulation Resistance: 500M ohms (min.)
- - Contact Resistance: 20m ohms (max.)
- - Current Rating: 1.5 Amps.
- - DC Resistance: 0.1 ohms (max.)
- - Withstanding Volatage: 1000 VAC RMS @ 60Hz/1min.
C6 FTP Lock Keystone JackORDERING INFORMATION
| Part No.: | Description: |
|---|---|
| JEKTVMK-F1MTZ | C5e, 90 Degree FTP Lock Keystone Jack, IDC: 110, w/h Cap |
| J6KTVMK-F1MTZ | C6, 90 Degree FTP Lock Keystone Jack, IDC: 110, w/h Cap |
| JGKTVMK-F1MTZ | C6A, 90 Degree FTP Lock Keystone Jack, IDC: 110, w/h Cap |
