KEY FEATURES
UTP / FTP Inline Coupler
Categories: 5E / 6
Meet ANSI/TIA/EIA-568B(Cat.5e/Cat.6), ISO/IEC 11801&EN50173

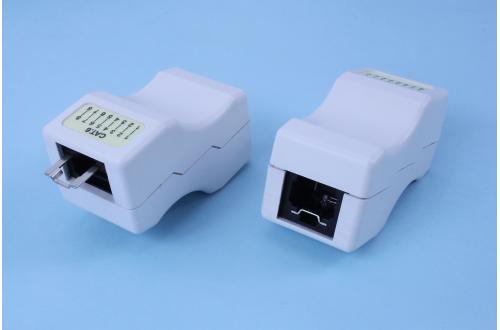

Lock Inline Coupler
OVERVIEW
As an extension of the two Patch Cables, when the network route is inserted into the Locking RJ45 slot, the network route is not easy to be removed and has a secret function.
UTP / FTP Inline Coupler
SPECIFICATIONS
- - RoHS
- - Meets C5e EIA/TIA 568B Standard
- - Meets C6 EIA/TIA 568B Standard
- - Jack Insertion Cycle: Over 2000 Cycles
- - Operation Temperature: -40 ~ +70 Degree Celsius
- - Body: Fireproof ABS UL-94V0
- - PCB: FR-4 / UL-94V0
- - Jack: 8P8C 50 micro inches gold plated
- - Insulation Resistance: 500M ohms (min.)
- - Contact Resistance: 20m ohms (max.)
- - Current Rating: 1.5 Amps.
- - DC Resistance: 0.1 ohms (max.)
- - Withstanding Volatage: 1000 VAC RMS @ 60Hz/1min.
C6 UTP Locking CouplerORDERING INFORMATION
UTP Inline Coupler
| Part No.: | Description: |
|---|---|
| JEICK-UNJXZ | C5e, Locking Function Inline Coupler, UTP, Jack To Jack Type, Slim Width=16.3mm |
| J6ICK-UJJHNXZ | C6, Locking Function Inline Coupler, UTP, Jack To Jack Type, Slim Width=16.3mm |
FTP Inline Coupler
| Part No.: | Description: |
|---|---|
| JEICK-FNJPTZ | C5e, Locking Function Inline Coupler, FTP, Jack To Jack Type, Slim Width=16.3mm |
| J6ICK-FNJPTZ | C6, Locking Function Inline Coupler, FTP, Jack To Jack Type, Slim Width=16.3mm |
