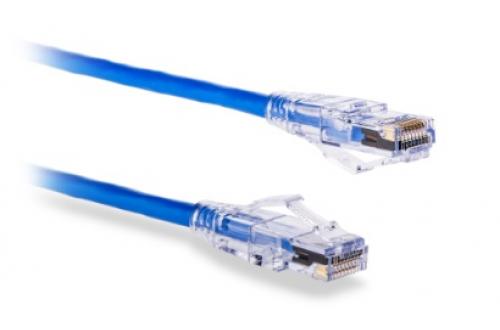

The Signamax Category 6 28 AWG Unscreened Patch Cords have been designed to meet the need for today’s high-bandwidth applications. These patch cords incorporate a slim profile snag-free boot design which protects the plug latch and offers greater flexibility. The cords are 100% transmission tested and support category 6 component level performance.
Manufactured using ETL verified 28 AWG stranded cable design to support a greater service life. Assembled in a controlled environment to ensure consistent quality, these patch cords provide reliable performance when mated with any category 6 connecting hardware and deliver supreme performance for network cabling systems.
ANSI/TIA-568-C.2: meets or exceeds category 6 (1-250 MHz) specifications
4-pair, 7 strands 28 AWG unscreened twisted pair (UTP)
ANSI/TIA-568-C.2: T568A & T568B
ISO/IEC 11801 2nd Ed.: 8-position pin/pair assignment (1-2/3-6/4-5/7-8)
Insulation Resistance: Min 500 MOhm @ 100 Vdc
Dielectric Withstanding Voltage: 1,000 Vdc/ac peak contact-to-contact @ 60 Hz for 1 min
Contact Resistance: Max 20 mOhm
Current Rating: Refer to downloadable spec sheet.
Assembly: 4 pairs, 7 strands 28 AWG, UTP
Insulation: High density polyethylene
Plug Housing: UL listed 94V-0 flame retardant polycarbonate
IDC Blades: Phosphor bronze, min 50 μin of gold plating over 100 μin of nickel in contact area
Jacket:
Dimensions: Diameter < 0.25 in (6.35 mm)
Material: Flame retardant PVC compound
Retention: 50 N (11 lbf) for 60 ± 5 s
Mating Cycle Life: Min 750 cycles
Tensile Strength: ≥ 20 N per wire
Operating Temperature: 14 °F to 140 °F (-10 °C to 60 °C)
Storage Temperature: -40 °F to 158 °F (-40 °C to 70 °C)
Operating RH: 93% Max (non-condensing)
ANSI/TIA/EIA-568-C.2, IEEE 802.3 ab, FCC Part 68, UL 1863, UL 94V-0
X.21, V.11, S0, ISDN, CSMA/CD 10BASE-T, 100BASE-TX, 100BASE-T4, 100BASE-T2, 1000BASE-T, 10GBASE-T, TR 4/16/100, 100BASE-VG, ATM LAN 25/51/155, TP-PMD
5-year Limited Component
10-year Signamax Base Trunk
15-year Signamax Extended Component
25-year Signamax Cabling System
Information will be available soon
White Category 6 28 AWG Unscreened Patch Cords
| Part Number | Description | |
| C6C-128WH-3FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots White, 3 FT | |
| C6C-128WH-5FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots White, 5 FT | |
| C6C-128WH-7FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots White, 7 FT | |
| C6C-128WH-10FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots White, 10 FT | |
| C6C-128WH-15FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots White, 15 FT | |
| C6C-128WH-20FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots White, 20 FT | |
| C6C-128WH-25FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots White, 25 FT |
Yellow Category 6 28 AWG Unscreened Patch Cords
| Part Number | Description | |
| C6C-128YE-3FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots Yellow, 3 FT | |
| C6C-128YE-5FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots Yellow, 5 FT | |
| C6C-128YE-7FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots Yellow, 7 FT | |
| C6C-128YE-10FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots Yellow, 10 FT | |
| C6C-128YE-15FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots Yellow, 15 FT | |
| C6C-128YE-20FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots Yellow, 20 FT | |
| C6C-128YE-25FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots Yellow, 25 FT |
Red Category 6 28 AWG Unscreened Patch Cords
| Part Number | Description | |
| C6C-128RD-3FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots Red, 3 FT | |
| C6C-128RD-5FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots Red, 5 FT | |
| C6C-128RD-7FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots Red, 7 FT | |
| C6C-128RD-10FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots Red, 10 FT | |
| C6C-128RD-15FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots Red, 15 FT | |
| C6C-128RD-20FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots Red, 20 FT | |
| C6C-128RD-25FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots Red, 25 FT |
Blue Category 6 28 AWG Unscreened Patch Cords
| Part Number | Description | |
| C6C-128BU-3FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots Blue, 3 FT | |
| C6C-128BU-5FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots Blue, 5 FT | |
| C6C-128BU-7FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots Blue, 7 FT | |
| C6C-128BU-10FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots Blue, 10 FT | |
| C6C-128BU-15FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots Blue, 15 FT | |
| C6C-128BU-20FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots Blue, 20 FT | |
| C6C-128BU-25FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots Blue, 25 FT |
Gray Category 6 28 AWG Unscreened Patch Cords
| Part Number | Description | |
| C6C-128GY-3FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots Gray, 3 FT | |
| C6C-128GY-5FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots Gray, 5 FT | |
| C6C-128GY-7FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots Gray, 7 FT | |
| C6C-128GY-10FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots Gray, 10 FT | |
| C6C-128GY-15FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots Gray, 15 FT | |
| C6C-128GY-20FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots Gray, 20 FT | |
| C6C-128GY-25FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots Gray, 25 FT |
Black Category 6 28 AWG Unscreened Patch Cords
| Part Number | Description | |
| C6C-128BK-3FB | Category 6 28 AWG Unscreened Patch Cord w/ Snag-Proof Boots Black, 3 FT | |
| C6C-128BK-5FB | Category 6 28 AWG Unscreened Patch Cord w/ Snag-Proof Boots Black, 5 FT | |
| C6C-128BK-7FB | Category 6 28 AWG Unscreened Patch Cord w/ Snag-Proof Boots Black, 7 FT | |
| C6C-128BK-15FB | Category 6 28 AWG Unscreened Patch Cord w/ Snag-Proof Boots Black, 15 FT | |
| C6C-128BK-20FB | Category 6 28 AWG Unscreened Patch Cord w/ Snag-Proof Boots Black, 20 FT | |
| C6C-128BK-25FB | Category 6 28 AWG Unscreened Patch Cord w/ Snag-Proof Boots Black, 25 FT | |
| C6C-128WBK-25FB | Category 6 28 AWG Unscreened Patch Cord w/Snag-Proof Boots Black, 25 FT |
